¶ Web Guard
¶ 说明
Guard 5.0 (opens new window) 于 2022 年 8 月 17 日发布,推荐使用 Guard 5.0 及以上版本,低于 5.0 的版本将不再维护!
如果你正在使用之前的版本 Guard 3.x (opens new window) 或 Guard 4.x (opens new window),仍然可以参考:
- 将 Guard 接入到 React 项目(4.x) (opens new window)
- 将 Guard 接入到 Vue 项目(4.x) (opens new window)
- 将 Guard 接入到 Angular 项目(4.x) (opens new window)
- 将 Guard 接入到原生 JS 项目(4.x) (opens new window)
Guard 是 Authing 提供的一种轻便的认证组件,你可以把它嵌入在你任何的通过浏览器进行用户交互的应用中,一站式处理复杂的用户认证流程。
现在开始跟随引导将 Authing Guard 接入到你的项目中吧!
条目 | 说明 |
---|---|
最新版本 | 5.2.0 |
仓库地址 | https://github.com/authing/Guard |
¶ 第一步:在 Authing 控制台创建应用
首先,你需要将你的应用接入 Authing 控制台。如果你还没有创建,请先在 Authing 控制台创建一个应用 (opens new window)。

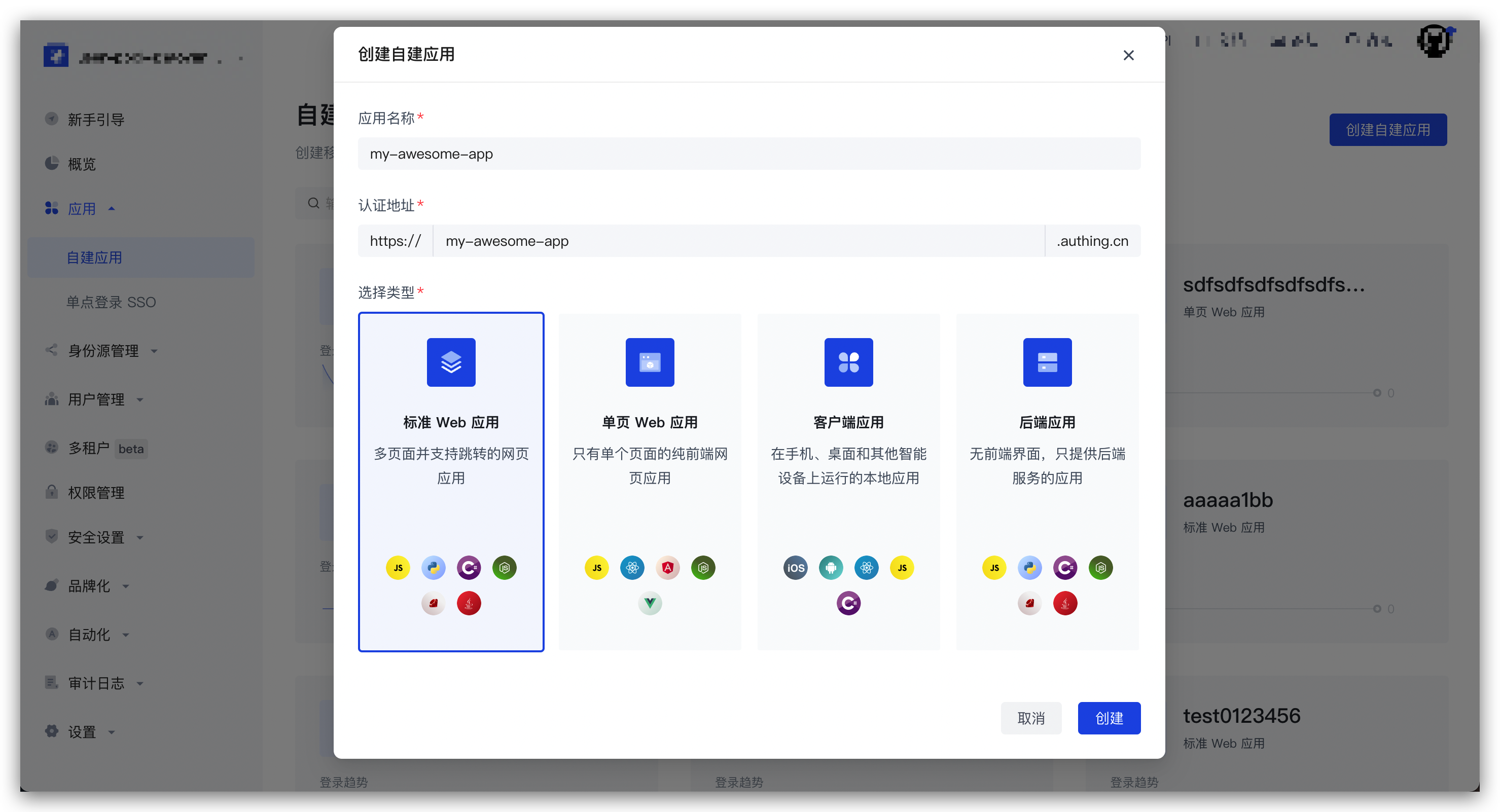

从 Authing 控制台左侧导航进入 自建应用 功能区,点击右上角的 创建自建应用 按钮,填入以下信息:
- 应用名称:填入你的应用名称;
- 认证地址:选择一个二级域名,必须为合法的域名格式,例如
my-awesome-app
; - 应用类型:选择 标准 Web 应用 或 单页 Web 应用。
创建完成!接下来你将正式开始 Authing Guard (v5.0) 的接入和配置。
¶ 第二步:安装、初始化并获取 Guard 实例
¶ 安装并初始化
有两种方式可以供你选择:安装 Authing library 或 直接通过浏览器加载。
无论使用哪一种安装方式,你都需要用到应用的 APP ID,请先 前往控制台获取 (opens new window)。关于 APP ID 所在位置,请参阅 应用配置 (opens new window)。
¶ 方法一:安装 Authing library
推荐使用 npm 或 yarn,它们能更好的与 Webpack
、Rollup
等打包工具进行配合,也可放心地在生产环境打包部署使用,享受整个生态圈和工具链带来的诸多好处。
首先,通过 npm / yarn 安装 Authing library。
# 兼容 React 16/17
npm install --save @authing/guard-react
# OR
yarn add @authing/guard-react
# 兼容 React 18
npm install --save @authing/guard-react18
# OR
yarn add @authing/guard-react18
# 兼容 Vue 2
npm install --save @authing/guard-vue2
# OR
yarn add @authing/guard-vue2
# 兼容 Vue 3
npm install --save @authing/guard-vue3
# OR
yarn add @authing/guard-vue3
# 兼容 Angular 14
npm install --save @authing/guard-angular
# OR
yarn add @authing/guard-angular
// App.tsx
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/App.tsx
import { GuardProvider } from "@authing/guard-react";
import "@authing/guard-react/dist/esm/guard.min.css";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/App.tsx
// import { GuardProvider } from '@authing/guard-react18';
// import "@authing/guard-react18/dist/esm/guard.min.css";
import React from "react";
// 你的业务代码根组件
import RouterComponent from "./router";
function App() {
return (
<GuardProvider
appId="AUTHING_APP_ID"
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host="https://my-authing-app.example.com"
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri="YOUR_REDIRECT_URI"
>
<RouterComponent></RouterComponent>
</GuardProvider>
);
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/main.js
// main.js
import Vue from "vue";
import { GuardPlugin } from "@authing/guard-vue2";
import "@authing/guard-vue2/dist/esm/guard.min.css";
Vue.use(GuardPlugin, {
appId: "AUTHING_APP_ID",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
});
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/main.ts
// main.ts
import { createApp } from "vue";
import { createGuard } from "@authing/guard-vue3";
import "@authing/guard-vue3/dist/esm/guard.min.css";
// 你的业务代码根组件
import App from "./App.vue";
const app = createApp(App);
app.use(
createGuard({
appId: "AUTHING_APP_ID",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
})
);
// angular.json
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/angular.json
{
"projects": {
"architect": {
"build": {
"styles": ["node_modules/@authing/guard-angular/dist/guard.min.css"]
}
}
}
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/app.module.ts
// app.module.ts
import { NgModule } from "@angular/core";
import { BrowserModule } from "@angular/platform-browser";
import { AppRoutingModule } from "./app-routing.module";
import { AppComponent } from "./app.component";
import { GuardModule } from "@authing/guard-angular";
@NgModule({
declarations: [AppComponent],
imports: [
BrowserModule,
AppRoutingModule,
GuardModule.forRoot({
appId: "AUTHING_APP_ID",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI",
}),
],
providers: [],
bootstrap: [AppComponent],
})
export class AppModule {}
调试成功后,即完成 Authing library 的初始化加载。
¶ 方法二:直接通过浏览器加载
首先,在你的 HTML 文件中使用 script
和 link
标签直接引入文件,并使用全局变量 GuardFactory
。
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8" />
<meta http-equiv="X-UA-Compatible" content="IE=edge" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<title>Authing Guard Demo</title>
<script src="https://cdn.authing.co/packages/guard/5.1.5/guard.min.js"></script>
<link rel="stylesheet" href="https://cdn.authing.co/packages/guard/5.1.5/guard.min.css" />
</head>
<body>
<div id="authing-guard-container"></div>
<script>
const guard = new GuardFactory.Guard({
// 你可以前往 Authing 控制台的本应用详情页查看你的 APP ID
appId: "AUTHING_APP_ID",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
});
// 挂载 Authing Guard
guard.start("#authing-guard-container");
</script>
</body>
</html>
无论通过哪一种方式,你都可以完成 Authing Guard 在你项目中的安装和初始化。
接下来,你可以根据实际的需要,直接阅读对应的使用指南和代码示例。
¶ 获取 Guard 实例
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/pages/Embed.tsx
import { useGuard } from "@authing/guard-react";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/pages/Embed.tsx
// import { useGuard } from '@authing/guard-react18';
export default function Login() {
const guard = useGuard();
console.log("guard instance: ", guard);
return <div></div>;
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/views/Home.vue
export default {
created() {
console.log("guard instance: ", this.$guard);
},
};
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/views/Home.vue
import { useGuard } from "@authing/guard-vue3";
const guard = useGuard();
console.log("guard instance: ", guard);
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/pages/embed/embed.component.ts
// Angular 组件中使用 Guard API
import { Component } from "@angular/core";
import { GuardService } from "@authing/guard-angular";
@Component({
selector: "home-container",
templateUrl: "./home.component.html",
styleUrls: ["./home.component.css"],
})
export class HomeComponent {
constructor(
// 使用 Angular 依赖注入,获取 Guard 实例
private guard: GuardService
) {}
ngOnInit() {
console.log("guard instance: ", this.guard.client);
}
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard/normal/embed.html
const guard = new GuardFactory.Guard({
// 你可以前往 Authing 控制台的本应用详情页查看你的 App ID
appId: "AUTHING_APP_ID",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
});
console.log("guard instance: ", guard);
¶ 第三步:常见操作
¶ 托管模式 & 内嵌模式
托管模式: 指跳转到 Authing 提供的托管登录页。Authing 默认使用 OIDC 标准协议认证,你的用户在登录时将始终由 Authing 提供的认证最佳实践保驾护航。
- 安全性:你的业务系统将用户重定向到 Authing,用户在此进行身份验证,然后重定向回在控制台配置的应用回调连接。
- 样式丰富性:托管模式提供了登录注册表单自定义配置,可通过控制台配置和 CSS 进行界面自定义。
- 集成便利性:你不需要额外运维登录页面,Authing 将负责此页面的维护和升级,当 Authing 有新功能发布之后,你不需要做任何操作即可获取最新能力。
内嵌模式: 指的是将 Authing 提供的登录组件(Guard)嵌入到你的 Web 应用中。仅需要几行 JavaScript 代码即可,该模式包含两种形态:
- 普通形态:样式与托管模式一致,但灵活之处在于你可以将它嵌入到你的任意的 DOM 节点。
- 模态框形态:和普通形态类似,只不过通过模态框(Modal)的样式进行展示。
对于大多数登录认证场景,我们推荐使用「托管模式」进行集成。这是最简便、安全、通用的 Authing 认证最佳实践。
¶ 使用托管模式
托管模式将跳转到 Authing 提供的托管登录页。由于此模式 Authing 默认使用 OIDC 标准协议认证,你需要进行以下额外配置:

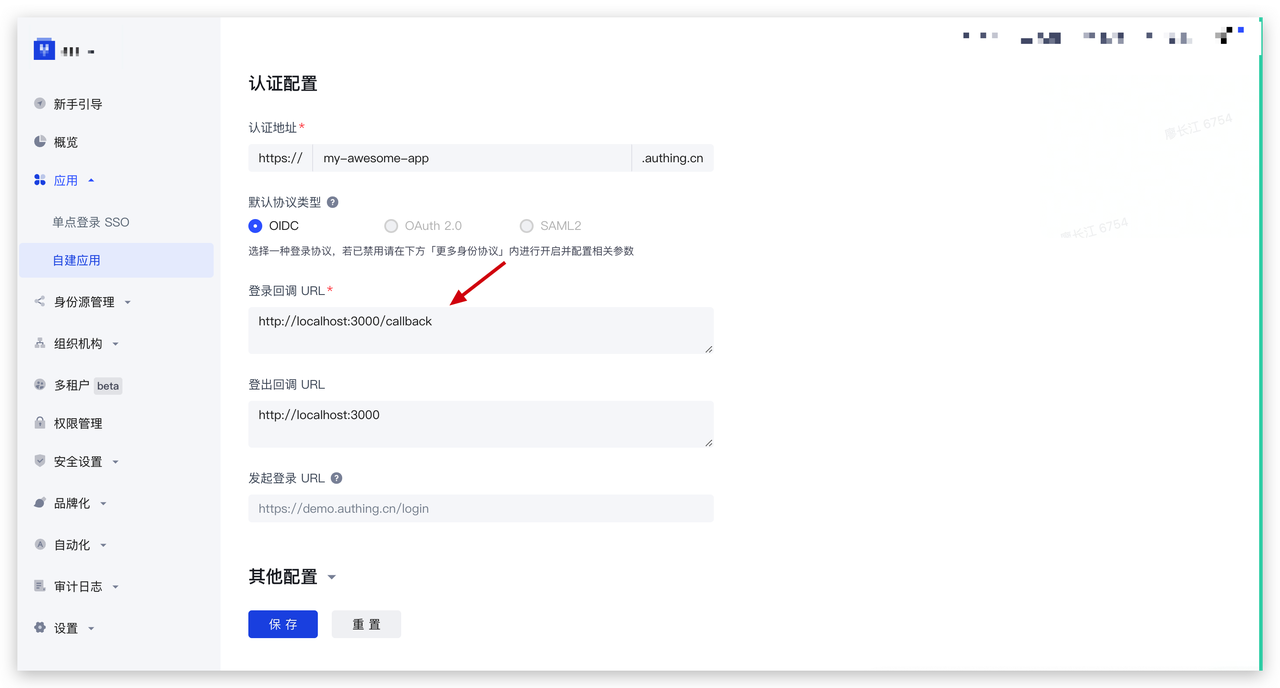

- 在 Authing 控制台 (opens new window) 的 应用 -> 自建应用 -> 应用详情 中配置 登录回调 URL,回调地址为下述示例代码中 Callback 页面地址,此处以
http://localhost:3000/callback
为例:

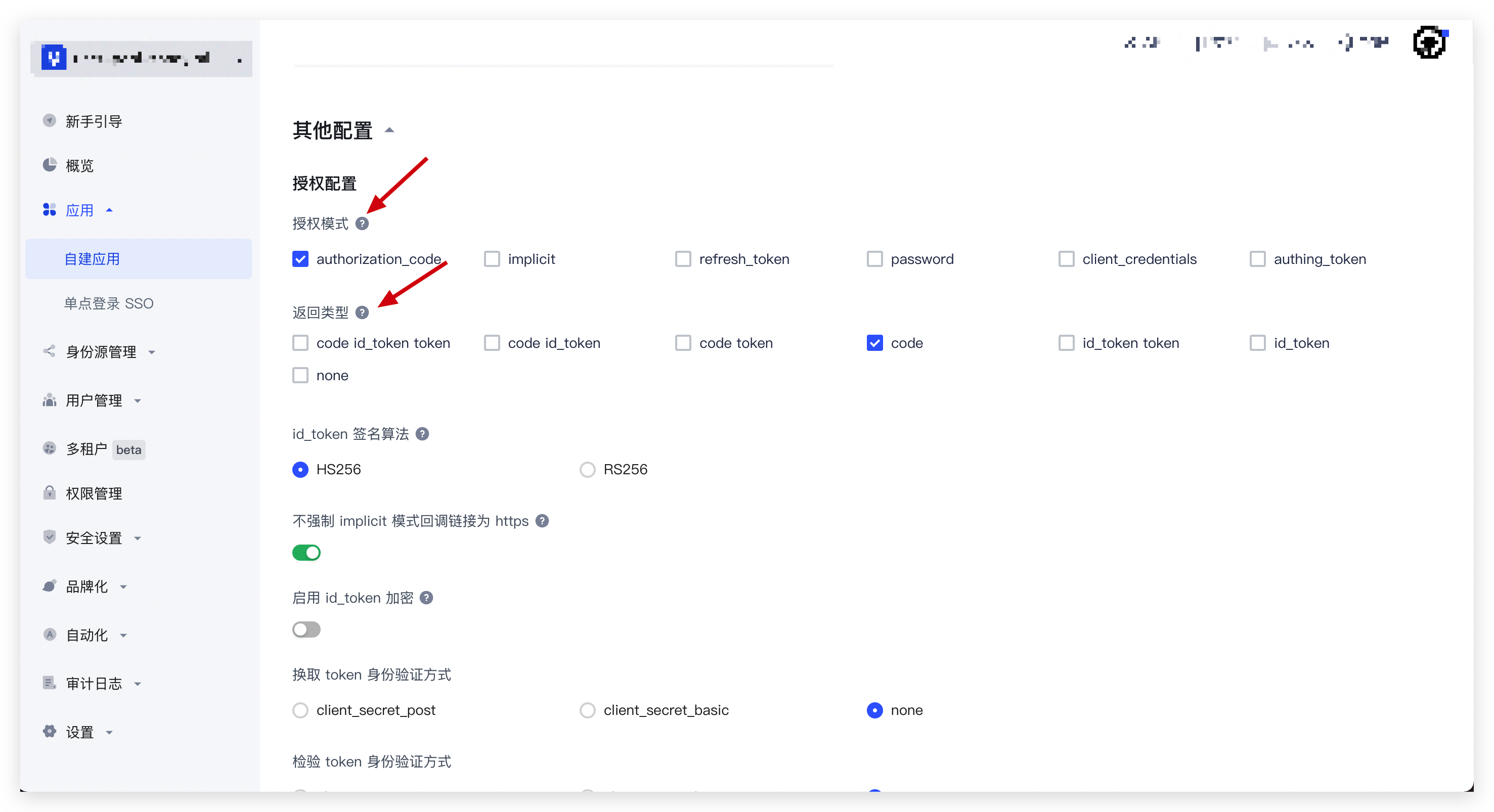

- 在应用详情的 协议配置 -> 授权配置 中,授权模式 选择 authentication_code,返回类型 选择 code:

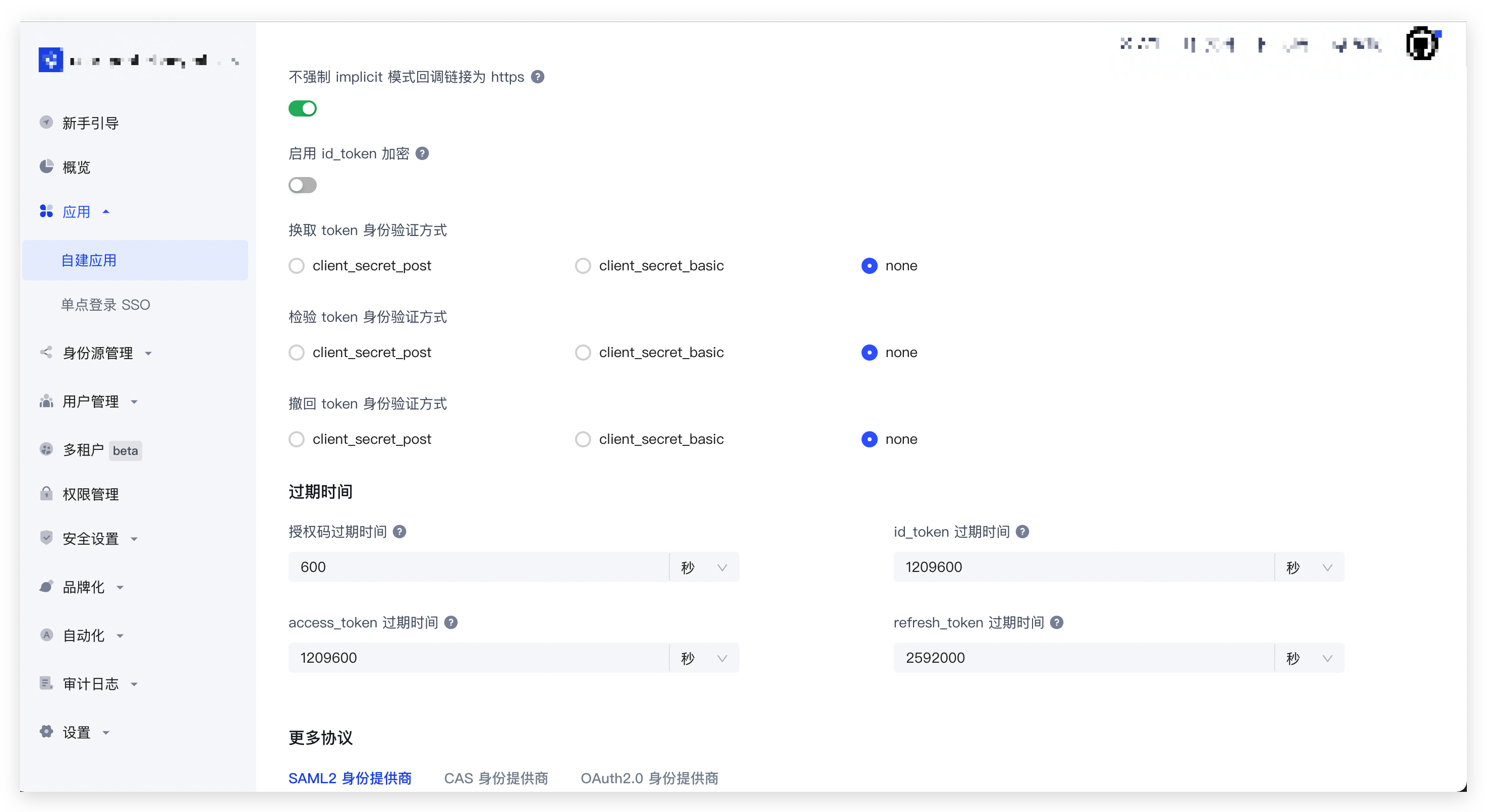

- 如果是标准 Web 应用,请在应用详情的 协议配置 -> 授权配置 中,请确保应用的 换取 token 身份验证方式 设置为了 none。
如果你的应用类型为单页 Web 应用,此次选项会被隐藏,为正常情况。
// Jump.tsx
// React16 / 17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/pages/Jump.tsx
import { useGuard } from "@authing/guard-react";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/pages/Jump.tsx
// import { useGuard } from '@authing/guard-react18';
export default function Jump() {
const guard = useGuard();
// 跳转到 Authing 托管页面登录
const startWithRedirect = () => guard.startWithRedirect();
return (
<div>
<div>
<button className="authing-button" onClick={startWithRedirect}>
Start With Redirect
</button>
</div>
</div>
);
}
// Callback.tsx
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/pages/Callback.tsx
import { JwtTokenStatus, useGuard, User } from '@authing/guard-react';
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/pages/Callback.tsx
// import { JwtTokenStatus, useGuard, User } from '@authing/guard-react18';
import React, { useEffect } from 'react';
import { useHistory } from 'react-router-dom';
export default function Callback() {
const history = useHistory()
const guard = useGuard()
const handleCallback = async () => {
try {
// 1. 触发 guard.handleRedirectCallback() 方法完成登录认证
// 用户认证成功之后,我们会将用户的身份凭证存到浏览器的本地缓存中
await guard.handleRedirectCallback()
// 2. 处理完 handleRedirectCallback 之后,你需要先检查用户登录态是否正常
const loginStatus: JwtTokenStatus | undefined = await guard.checkLoginStatus()
if (!loginStatus) {
return console.error('Guard is not get login status')
}
// 3. 获取到登录用户的用户信息
const userInfo: User | null = await guard.trackSession()
console.log(userInfo)
// 你也可以重定向到你的任意业务页面,比如重定向到用户的个人中心
// 如果你希望实现登录后跳转到同一页面的效果,可以通过在调用 startWithRedirect 时传入的自定义 state 实现
// 之后你在这些页面可以通过 trackSession 方法获取用户登录态和用户信息
// 示例一:跳转到固定页面
history.replace('/personal')
// 示例二:获取自定义 state,进行特定操作
// const search = window.location.search
// 从 URL search 中解析 state
} catch (e) {
// 登录失败,推荐再次跳转到登录页面
console.error('Guard handleAuthingLoginCallback error: ', e)
}
}
useEffect(() => {
handleCallback()
})
return <div>This is Callback page</div>
}
// Personal.tsx
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/pages/Personal.tsx
import { useGuard, User } from '@authing/guard-react';
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/pages/Personal.tsx
// import { useGuard, User } from '@authing/guard-react18';
import React, { useEffect, useState } from 'react';
export default function Personal() {
const [userInfo, setUserInfo] = useState('')
const guard = useGuard()
useEffect(() => {
guard.trackSession().then((res: User | null) => {
setUserInfo(JSON.stringify(res, null, 2))
})
}, [])
return (
<div>
{userInfo && (
<div>
<div>用户信息:</div>
<textarea cols={100} rows={30} defaultValue={userInfo}></textarea>
</div>
)}
</div>
)
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/views/Jump.vue
// Jump.vue
export default {
methods: {
startWithRedirect() {
// 跳转到 Authing 托管页面登录
this.$guard.startWithRedirect();
},
},
};
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/views/Callback.vue
// Callback.vue
export default {
data () {
return {
message: 'This is callback page ~'
}
},
mounted () {
this.handleAuthingLoginCallback()
},
methods: {
async handleAuthingLoginCallback () {
try {
// 1. 触发 guard.handleRedirectCallback() 方法完成登录认证
// 用户认证成功之后,我们会将用户的身份凭证存到浏览器的本地缓存中
await this.$guard.handleRedirectCallback()
// 2. 处理完 handleRedirectCallback 之后,你需要先检查用户登录态是否正常
const loginStatus = await this.$guard.checkLoginStatus()
if (!loginStatus) {
return console.error('Guard is not get login status')
}
// 3. 获取到登录用户的用户信息
const userInfo = await this.$guard.trackSession()
console.log(userInfo)
// 你也可以重定向到你的任意业务页面,比如重定向到用户的个人中心
// 如果你希望实现登录后跳转到同一页面的效果,可以通过在调用 startWithRedirect 时传入的自定义 state 实现
// 之后你在这些页面可以通过 trackSession 方法获取用户登录态和用户信息
// 示例一:跳转到固定页面
this.$router.replace('/personal')
// 示例二:获取自定义 state,进行特定操作
// const search = window.location.search
// 从 URL search 中解析 state
} catch (e) {
// 登录失败,推荐再次跳转到登录页面
console.error('Guard handleAuthingLoginCallback error: ', e)
}
}
}
}
<template>
<div class="personal-container">
<!-- 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/views/Personal.vue -->
<!-- Personal.vue -->
<textarea id="" cols="100" rows="30" :value="userInfo"></textarea>
</div>
</template>
<script>
export default {
data () {
return {
userInfo: ''
}
},
created () {
this.getUserInfo()
},
methods: {
async getUserInfo () {
const userInfo = await this.$guard.trackSession()
this.userInfo = JSON.stringify(userInfo, null, 2)
}
}
}
</script>
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/views/Jump.vue
// Jump.vue
import { useGuard } from "@authing/guard-vue3";
const guard = useGuard();
const startWithRedirect = () => {
// 跳转到 Authing 托管页面登录
guard.startWithRedirect();
};
<template>
<div class="personal-container">
<!-- 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/views/Callback.vue -->
<!-- Callback.vue -->
<textarea id="" cols="100" rows="30" :value="userInfo"></textarea>
</div>
</template>
<script lang="ts" setup>
import { onMounted } from 'vue'
import { useRouter } from 'vue-router'
import { useGuard } from '@authing/guard-vue3'
import type { JwtTokenStatus, User } from '@authing/guard-vue3'
const router = useRouter()
const guard = useGuard()
const handleAuthingLoginCallback = async () => {
try {
// 1. 触发 guard.handleRedirectCallback() 方法完成登录认证
// 用户认证成功之后,我们会将用户的身份凭证存到浏览器的本地缓存中
await guard.handleRedirectCallback()
// 2. 处理完 handleRedirectCallback 之后,你需要先检查用户登录态是否正常
const loginStatus: JwtTokenStatus | undefined = await guard.checkLoginStatus()
if (!loginStatus) {
return console.error('Guard is not get login status')
}
// 3. 获取到登录用户的用户信息
const userInfo: User | null = await guard.trackSession()
console.log(userInfo)
// 你也可以重定向到你的任意业务页面,比如重定向到用户的个人中心
// 如果你希望实现登录后跳转到同一页面的效果,可以通过在调用 startWithRedirect 时传入的自定义 state 实现
// 之后你在这些页面可以通过 trackSession 方法获取用户登录态和用户信息
// 示例一:跳转到固定页面
router.replace({
name: 'Personal'
})
// 示例二:获取自定义 state,进行特定操作
// const search = window.location.search
// 从 URL search 中解析 state
} catch (e) {
// 登录失败,推荐再次跳转到登录页面
console.error('Guard handleAuthingLoginCallback error: ', e)
}
}
onMounted(() => {
handleAuthingLoginCallback()
})
</script>
<template>
<div class="personal-container">
<!-- 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/views/Personal.vue -->
<!-- Personal.vue -->
<textarea id="" cols="100" rows="30" :value="userInfo"></textarea>
</div>
</template>
<script lang="ts" setup>
import { ref, onMounted } from 'vue'
import { useGuard } from '@authing/guard-vue3'
import type { User } from '@authing/guard-vue3'
const userInfo = ref<string>('')
const guard = useGuard()
const getUserInfo = async () => {
const _userInfo: User | null = await guard.trackSession()
userInfo.value = JSON.stringify(_userInfo, null, 2)
}
onMounted(() => {
getUserInfo()
})
</script>
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/pages/jump/jump.component.ts
// jump.component.ts
// Angular 组件中使用 Guard API
import { Component } from "@angular/core";
import { GuardService } from "@authing/guard-angular";
@Component({
selector: "jump-container",
templateUrl: "./jump.component.html",
styleUrls: ["./jump.component.css"],
})
export class HomeComponent {
constructor(
// 使用 Angular 依赖注入,获取 Guard 实例
private guard: GuardService
) {}
startWithRedirect() {
// 跳转到 Authing 托管页面登录
this.guard.client.startWithRedirect();
}
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/pages/callback/callback.component.ts
// callback.component.ts
import { Component } from '@angular/core'
import { Router } from '@angular/router'
import { GuardService, JwtTokenStatus, User } from '@authing/guard-angular'
@Component({
selector: 'callback-container',
templateUrl: './callback.component.html',
styleUrls: ['./callback.component.css']
})
export class CallbackComponent {
constructor (
private router: Router,
private guard: GuardService
) {}
ngOnInit () {
this.handleAuthingLoginCallback()
}
async handleAuthingLoginCallback () {
try {
// 1. 触发 guard.handleRedirectCallback() 方法完成登录认证
// 用户认证成功之后,我们会将用户的身份凭证存到浏览器的本地缓存中
await this.guard.client.handleRedirectCallback()
// 2. 处理完 handleRedirectCallback 之后,你需要先检查用户登录态是否正常
const loginStatus: JwtTokenStatus | undefined = await this.guard.client.checkLoginStatus()
if (!loginStatus) {
return console.error('Guard is not get login status')
}
// 3. 获取到登录用户的用户信息
const userInfo: User | null = await this.guard.client.trackSession()
console.log(userInfo)
// 你也可以重定向到你的任意业务页面,比如重定向到用户的个人中心
// 如果你希望实现登录后跳转到同一页面的效果,可以通过在调用 startWithRedirect 时传入的自定义 state 实现
// 之后你在这些页面可以通过 trackSession 方法获取用户登录态和用户信息
// 示例一:跳转到固定页面
this.router.navigateByUrl('personal', {
replaceUrl: true
})
// 示例二:获取自定义 state,进行特定操作
// const search = window.location.search
// 从 URL search 中解析 state
} catch (e) {
// 登录失败,推荐再次跳转到登录页面
console.error('Guard handleAuthingLoginCallback error: ', e)
}
}
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/pages/personal/personal.component.ts
// personal.component.ts
import { Component } from '@angular/core'
import { GuardService, User } from '@authing/guard-angular'
@Component({
selector: 'personal-container',
templateUrl: './personal.component.html',
styleUrls: ['./personal.component.css']
})
export class PersonalComponent {
constructor(private guard: GuardService) {}
userInfo = ''
ngOnInit() {
this.getUserInfo()
}
async getUserInfo() {
const _userInfo: User | null = await this.guard.client.trackSession()
this.userInfo = JSON.stringify(_userInfo || '', null, 2)
}
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard/normal/jump.html
// jump.html
const guard = new GuardFactory.Guard({
// 你可以前往 Authing 控制台的本应用详情页查看你的 App ID
appId: "AUTHING_APP_ID",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
});
function startWithRedirect() {
// 跳转到 Authing 托管页面登录
guard.startWithRedirect();
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard/normal/callback.html
// callback.html
const guard = new GuardFactory.Guard(guardOptions)
handleAuthingLoginCallback()
async function handleAuthingLoginCallback () {
try {
// 1. 触发 guard.handleRedirectCallback() 方法完成登录认证
// 用户认证成功之后,我们会将用户的身份凭证存到浏览器的本地缓存中
await guard.handleRedirectCallback()
// 2. 处理完 handleRedirectCallback 之后,你需要先检查用户登录态是否正常
const loginStatus = await guard.checkLoginStatus()
if (!loginStatus) {
return console.error('Guard is not get login status')
}
// 3. 获取到登录用户的用户信息
const userInfo = await guard.trackSession()
console.log(userInfo)
// 你也可以重定向到你的任意业务页面,比如重定向到用户的个人中心
// 如果你希望实现登录后跳转到同一页面的效果,可以通过在调用 startWithRedirect 时传入的自定义 state 实现
// 之后你在这些页面可以通过 trackSession 方法获取用户登录态和用户信息
// 示例一:跳转到固定页面
window.location.replace(personalPageUrl)
// 示例二:获取自定义 state,进行特定操作
// const search = window.location.search
// 从 URL search 中解析 state
} catch (e) {
// 登录失败,推荐再次跳转到登录页面
console.error('Guard handleAuthingLoginCallback error: ', e)
}
}
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Authing Guard Demo - Personal</title>
<script src="https://cdn.authing.co//packages/guard/5.1.5/guard.min.js"></script>
<script src="https://cdn.authing.co/packages/face-api/face-api.min.js"></script>
<script src="./config.js"></script>
<link rel="stylesheet" href="https://cdn.authing.co/packages/guard/5.1.5/guard.min.css">
</head>
<body>
<!-- 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard/normal/personal.html -->
<!-- personal.html -->
<button onclick="getUserInfo()">Get User Info</button>
<script>
const guard = new GuardFactory.Guard(guardOptions)
async function getUserInfo () {
const userInfo = await guard.trackSession()
console.log(userInfo)
}
</script>
</body>
</html>
此外,startWithRedirect
函数还可以自定义传入一个对象,具体参数如下:
名称 | 类型 | 默认值 | 必传 | 描述 |
---|---|---|---|---|
codeChallengeMethod | CodeChallengeMethod | S256 | 否 | 表示计算
|
scope | String | "openid profile email phone address" | 否 | OIDC scope,用空格分割,默认为 "openid profile email phone address"。完整的 scope 列表请见OIDC 常见问题 (opens new window)。 |
state | String | 自动生成的随机数 | 否 | 随机字符串,选填,默认自动生成。 |
nonce | String | 自动生成的随机数 | 否 | 随机字符串,选填,默认自动生成。 |
responseMode | String | query | 否 | 响应类型,可选值为 query、fragment、form_post;默认为 query,即通过浏览器重定向发送 code 到回调地址。 |
responseType | String | code | 否 | 响应类型,选填,可选值为 code、code id_token token、code id_token、code id_token、code token、id_token token、id_token、none;默认为 code,授权码模式。 |
接下来 startWithRedirect
将支持传入以下两个参数(暂不支持):
- forced(即便已登录,也强制用户再次登录)。
- useImplicitMode(是否使用 OIDC implicit 模式替代默认的 PKCE 模式,安全性较低,不推荐使用)。
CodeChallengeMethod
名称 | 描述 |
---|---|
S256 | code_challenge 是使用 SHA256 计算 |
plain | 不使用任何算法计算 |
¶ 使用内嵌模式
¶ 普通形态
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/pages/Embed.tsx
import { useGuard, User } from "@authing/guard-react";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/pages/Embed.tsx
// import { useGuard, User } from "@authing/guard-react18";
import React, { useEffect } from "react";
export default function Login() {
// 获取 Guard 实例
const guard = useGuard();
useEffect(() => {
// 使用 start 方法挂载 Guard 组件到你指定的 DOM 节点,登录成功后返回 userInfo
guard.start("#authing-guard-container").then((userInfo: User) => {
console.log("userInfo: ", userInfo);
});
}, []);
return (
<div>
<div id="authing-guard-container"></div>
</div>
);
}
<template>
<!-- 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/views/Embed.vue -->
<div id="authing-guard-container"></div>
</template>
<script>
export default {
mounted() {
// 使用 start 方法挂载 Guard 组件到你指定的 DOM 节点,登录成功后返回 userInfo
this.$guard.start("#authing-guard-container").then((userInfo) => {
console.log("userInfo: ", userInfo);
});
},
};
</script>
<template>
<!-- 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/views/Embed.vue -->
<div id="authing-guard-container"></div>
</template>
<script lang="ts" setup>
import { onMounted } from "vue";
import { useGuard } from "@authing/guard-vue3";
import type { User } from "@authing/guard-vue3";
const guard = useGuard();
onMounted(() => {
// 使用 start 方法挂载 Guard 组件到你指定的 DOM 节点,登录成功后返回 userInfo
guard.start("#authing-guard-container").then((userInfo: User) => {
console.log("userInfo: ", userInfo);
});
});
</script>
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/pages/embed/embed.component.ts
import { Component } from "@angular/core";
import { GuardService, User } from "@authing/guard-angular";
@Component({
selector: "embed-container",
templateUrl: "./embed.component.html",
styleUrls: ["./embed.component.css"]
})
export class LoginComponent {
constructor(private guard: GuardService) {}
ngOnInit() {
// 使用 start 方法挂载 Guard 组件到你指定的 DOM 节点,登录成功后返回 userInfo
this.guard.client
.start("#authing-guard-container")
.then((userInfo: User) => {
console.log("userInfo: ", userInfo);
});
}
}
<!-- https://github.com/Authing/Guard/blob/v5/examples/guard/normal/embed.html -->
<div id="authing-guard-container"></div>
// 获取 Guard 实例
const guard = new GuardFactory.Guard({
// 你可以前往 Authing 控制台的本应用详情页查看你的 App ID
appId: "AUTHING_APP_ID",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
});
// 使用 start 方法挂载 Guard 组件到你指定的 DOM 节点,登录成功后返回 userInfo
guard.start("#authing-guard-container").then((userInfo) => {
console.log("userInfo: ", userInfo);
});
¶ 模态框形态
初始化时,你需要将初始化参数的 mode
设置成 modal
。
你可以通过 guard
实例 start
方法对 模态框 进行渲染,同时可以通过 show
和 hide
控制 模态框 的显示和隐藏:
// App.tsx
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/modal/src/App.tsx
import { GuardProvider } from "@authing/guard-react";
import "@authing/guard-react/dist/esm/guard.min.css";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/modal/src/App.tsx
// import { GuardProvider } from "@authing/guard-react18";
// import "@authing/guard-react18/dist/esm/guard.min.css";
import React from "react";
import RouterComponent from "./router";
function App() {
return (
<GuardProvider
appId="AUTHING_APP_ID"
mode="modal"
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host="https://my-authing-app.example.com"
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri="YOUR_REDIRECT_URI"
>
<RouterComponent></RouterComponent>
</GuardProvider>
);
}
// Embed.tsx
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/modal/src/pages/Embed.tsx
import { useGuard, User } from "@authing/guard-react";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/modal/src/pages/Embed.tsx
// import { useGuard, User } from "@authing/guard-react18";
export default function Embed() {
const guard = useGuard();
const showGuard = () => guard.show();
useEffect(() => {
// 挂载模态框,当用户完成登录之后,你可以获取到用户信息
guard.start("#authing-guard-container").then((userInfo: User) => {
console.log("userInfo: ", userInfo);
setTimeout(() => {
guard.hide();
}, 2000);
});
}, []);
return (
<div>
<button className="authing-button" onClick={showGuard}>
Show Guard
</button>
<div>
模态窗口打开并登录成功后会在 2 秒内调用 hide 方法关闭模态窗口,用于展示 hide 方法的效果
</div>
<div>模态框自动关闭后,可以点击 Show Guard 按钮再次显示</div>
<div id="authing-guard-container"></div>
</div>
);
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/modal/src/main.js
// main.js
import Vue from "vue";
import { GuardPlugin } from "@authing/guard-vue2";
import "@authing/guard-vue2/dist/esm/guard.min.css";
Vue.use(GuardPlugin, {
appId: "AUTHING_APP_ID",
mode: "modal",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
});
<template>
<!-- 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/modal/src/views/Embed.vue -->
<!-- Embed.vue -->
<div class="embed-container">
<button class="authing-button" @click="showGuard">Show Guard</button>
<div>
模态窗口打开并登录成功后会在 2 秒内调用 hide 方法关闭模态窗口,用于展示 hide 方法的效果
</div>
<div>模态框自动关闭后,可以点击 Show Guard 按钮再次显示</div>
<div id="authing-guard-container"></div>
</div>
</template>
<script>
export default {
mounted() {
// 使用 start 方法挂载 Guard 组件到你指定的 DOM 节点,登录成功后返回 userInfo
this.$guard.start("#authing-guard-container").then((userInfo) => {
console.log("userInfo: ", userInfo);
setTimeout(() => {
this.$guard.hide();
}, 2000);
});
},
methods: {
showGuard() {
this.$guard.show();
},
},
};
</script>
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/modal/src/main.ts
// main.ts
import { createApp } from "vue";
import App from "./App.vue";
import { createGuard } from "@authing/guard-vue3";
import "@authing/guard-vue3/dist/esm/guard.min.css";
const app = createApp(App);
app.use(
createGuard({
appId: "AUTHING_APP_ID",
mode: "modal",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
})
);
<template>
<!-- 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/modal/src/views/Embed.vue -->
<!-- Embed.vue -->
<div class="embed-container">
<button class="authing-button" @click="showGuard">Show Guard</button>
<div>
模态窗口打开并登录成功后会在 2 秒内调用 hide 方法关闭模态窗口,用于展示 hide 方法的效果
</div>
<div>模态框自动关闭后,可以点击 Show Guard 按钮再次显示</div>
<div id="authing-guard-container"></div>
</div>
</template>
<script lang="ts" setup>
import { onMounted } from "vue";
import { useGuard } from "@authing/guard-vue3";
const guard = useGuard();
const showGuard = () => guard.show();
onMounted(() => {
// 使用 start 方法挂载 Guard 组件到你指定的 DOM 节点,登录成功后返回 userInfo
guard.start("#authing-guard-container").then((userInfo) => {
console.log("userInfo: ", userInfo);
setTimeout(() => {
guard.hide();
}, 2000);
});
});
</script>
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/modal/src/app/app.module.ts
// app.module.ts
import { NgModule } from "@angular/core";
import { BrowserModule } from "@angular/platform-browser";
import { AppRoutingModule } from "./app-routing.module";
import { AppComponent } from "./app.component";
import { GuardModule } from "@authing/guard-angular";
@NgModule({
declarations: [AppComponent],
imports: [
BrowserModule,
AppRoutingModule,
GuardModule.forRoot({
appId: "AUTHING_APP_ID",
mode: "modal",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
}),
],
providers: [],
bootstrap: [AppComponent],
})
export class AppModule {}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/modal/src/app/pages/embed/embed.component.ts
// embed.component.ts
import { Component } from "@angular/core";
import { GuardService, User } from "@authing/guard-angular";
@Component({
selector: "embed-container",
templateUrl: "./embed.component.html",
styleUrls: ["./embed.component.css"],
})
export class EmbedComponent {
constructor(private guard: GuardService) {}
ngOnInit() {
this.guard.client
.start("#authing-guard-container")
.then((userInfo: User) => {
console.log("userInfo: ", userInfo);
setTimeout(() => {
this.guard.client.hide();
}, 2000);
});
}
showGuard() {
this.guard.client.show();
}
}
<!-- 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard/modal/embed.html -->
<button onclick="showGuard()">Show Guard</button>
<div>
模态窗口打开并登录成功后会在 2 秒内调用 hide 方法关闭模态窗口,用于展示 hide
方法的效果
</div>
<div>模态框自动关闭后,可以点击 Show Guard 按钮再次显示</div>
<div id="authing-guard-container"></div>
const guard = new GuardFactory.Guard({
appId: "AUTHING_APP_ID",
mode: "modal",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
});
guard.start("#authing-guard-container").then((userInfo) => {
// 登录成功后将在 then 回调中获取到 userInfo
console.log("userInfo: ", userInfo);
setTimeout(() => {
guard.hide();
}, 2000);
});
function showGuard() {
guard.show();
}
¶ 实现单点登录
单点登录能让用户在所有接入 Authing 的应用之间实现一次登录,即可使用所有应用。

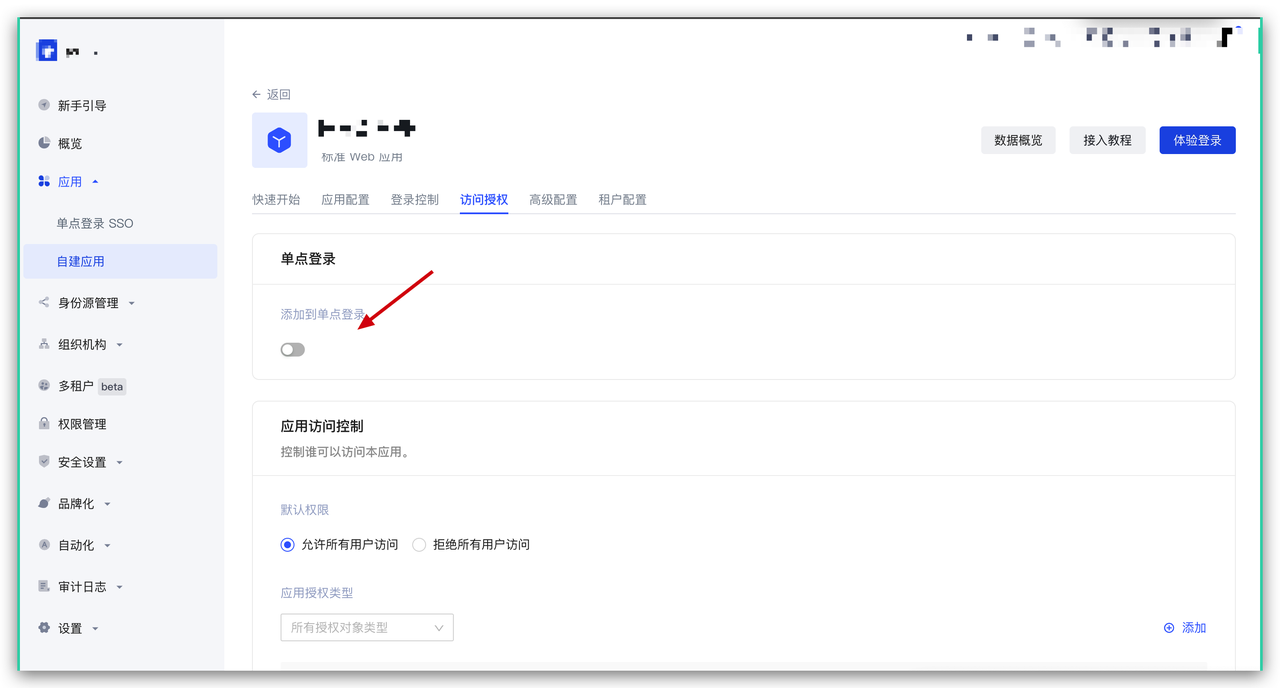

想要实现单点登录,你需要先将此应用 添加到单点登录:
之后在初始化 Authing Guard 时,需要将 isSSO
设置为 true
。
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/App.tsx
import { GuardProvider } from "@authing/guard-react";
import "@authing/guard-react/dist/esm/guard.min.css";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/App.tsx
// import { GuardProvider } from "@authing/guard-react18";
// import "@authing/guard-react18/dist/esm/guard.min.css";
import React from "react";
// 项目根组件
import RouterComponent from "./router";
function App() {
return (
<GuardProvider
appId="AUTHING_APP_ID"
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host="https://my-authing-app.example.com"
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri="YOUR_REDIRECT_URI"
isSSO={true}
>
<RouterComponent></RouterComponent>
</GuardProvider>
);
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/main.js
import Vue from "vue";
import { GuardPlugin } from "@authing/guard-vue2";
import "@authing/guard-vue2/dist/esm/guard.min.css";
Vue.use(GuardPlugin, {
appId: "AUTHING_APP_ID",
isSSO: true,
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
});
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/main.ts
import { createApp } from "vue";
import App from "./App.vue";
import { createGuard } from "@authing/guard-vue3";
import "@authing/guard-vue3/dist/esm/guard.min.css";
const app = createApp(App);
app.use(
createGuard({
appId: "AUTHING_APP_ID",
isSSO: true,
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
})
);
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/app.module.ts
import { NgModule } from "@angular/core";
import { BrowserModule } from "@angular/platform-browser";
import { AppRoutingModule } from "./app-routing.module";
import { AppComponent } from "./app.component";
import { GuardModule } from "@authing/guard-angular";
@NgModule({
declarations: [AppComponent],
imports: [
BrowserModule,
AppRoutingModule,
GuardModule.forRoot({
appId: "AUTHING_APP_ID",
isSSO: true,
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
}),
],
providers: [],
bootstrap: [AppComponent],
})
export class AppModule {}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard/normal/embed.html
const guard = new GuardFactory.Guard({
appId: "AUTHING_APP_ID",
isSSO: true,
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
});
¶ 登出
根据你的具体使用场景,退出登录分为 单应用登出 和 SSO 单点登出 两种。
¶ 单应用登出
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/pages/Embed.tsx
import { useGuard } from "@authing/guard-react";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/pages/Embed.tsx
// import { useGuard } from "@authing/guard-react18";
import React from "react";
export default function Logout() {
const guard = useGuard();
// 登出后的回调地址请在 Authing 控制台应用 -> 自建应用 -> 应用详情 -> 应用配置 -> 登出回调 URL 中配置
const onLogout = () => guard.logout();
return (
<div>
<button onClick={onLogout}>Logout</button>
</div>
);
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/views/Embed.vue
export default {
methods: {
// 登出后的回调地址请在 Authing 控制台应用 -> 自建应用 -> 应用详情 -> 应用配置 -> 登出回调 URL 中配置
logout() {
this.$guard.logout();
},
},
};
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/views/Embed.vue
import { useGuard } from "@authing/guard-vue3";
const guard = useGuard();
// 登出后的回调地址请在 Authing 控制台应用 -> 自建应用 -> 应用详情 -> 应用配置 -> 登出回调 URL 中配置
const logout = () => guard.logout();
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/pages/embed/embed.component.ts
import { Component } from "@angular/core";
import { GuardService } from "@authing/guard-angular";
@Component({
selector: "embed-container",
templateUrl: "./embed.component.html",
styleUrls: ["./embed.component.css"]
})
export class LoginComponent {
constructor(private guard: GuardService) {}
onLogout() {
// 登出后的回调地址请在 Authing 控制台应用 -> 自建应用 -> 应用详情 -> 应用配置 -> 登出回调 URL 中配置
this.guard.client.logout();
}
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard/normal/embed.html
const guard = new GuardFactory.Guard({
appId: "AUTHING_APP_ID",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
});
function Logout() {
// 登出后的回调地址请在 Authing 控制台应用 -> 自建应用 -> 应用详情 -> 应用配置 -> 登出回调 URL 中配置
guard.logout();
}
¶ SSO 单点登出
要实现单点登出,只需在初始化 Authing Guard 时,设置 isSSO
为 true
即可:
// App.tsx
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/App.tsx
import { GuardProvider } from "@authing/guard-react";
import "@authing/guard-react/dist/esm/guard.min.css";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/App.tsx
// import { GuardProvider } from "@authing/guard-react18";
// import "@authing/guard-react18/dist/esm/guard.min.css";
import React from "react";
// 项目根组件
import RouterComponent from "./router";
function App() {
return (
<GuardProvider
appId="AUTHING_APP_ID"
isSSO={true}
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host="https://my-authing-app.example.com"
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri="YOUR_REDIRECT_URI"
>
<RouterComponent></RouterComponent>
</GuardProvider>
);
}
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/pages/Embed.tsx
import { useGuard } from "@authing/guard-react";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/pages/Embed.tsx
// import { useGuard } from "@authing/guard-react18";
import React from "react";
export default function Logout() {
const guard = useGuard();
// 登出后的回调地址请在 Authing 控制台 -> 应用详情 -> 应用配置 -> 登出回调 URL 中配置
const onLogout = () => guard.logout();
return (
<div>
<button onClick={onLogout}>Logout</button>
</div>
);
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/main.js
// main.js
import Vue from "vue";
import { GuardPlugin } from "@authing/guard-vue2";
import "@authing/guard-vue2/dist/esm/guard.min.css";
Vue.use(GuardPlugin, {
appId: "AUTHING_APP_ID",
isSSO: true,
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
});
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/views/Embed.vue
export default {
methods: {
logout() {
// 登出后的回调地址请在 Authing 控制台 -> 应用详情 -> 应用配置 -> 登出回调 URL 中配置
this.$guard.logout();
},
},
};
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/main.ts
// main.ts
import { createApp } from "vue";
import { createGuard } from "@authing/guard-vue3";
import "@authing/guard-vue3/dist/esm/guard.min.css";
const app = createApp(App);
app.use(
createGuard({
appId: "AUTHING_APP_ID",
isSSO: true,
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
})
);
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/views/Embed.vue
import { useGuard } from "@authing/guard-vue3";
const guard = useGuard();
// 登出后的回调地址请在 Authing 控制台 -> 应用详情 -> 应用配置 -> 登出回调 URL 中配置
const logout = () => guard.logout();
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/app.module.ts
// app.module.ts
import { NgModule } from "@angular/core";
import { BrowserModule } from "@angular/platform-browser";
import { AppRoutingModule } from "./app-routing.module";
import { AppComponent } from "./app.component";
import { GuardModule } from "@authing/guard-angular";
@NgModule({
declarations: [AppComponent],
imports: [
BrowserModule,
AppRoutingModule,
GuardModule.forRoot({
appId: "AUTHING_APP_ID",
isSSO: true,
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
}),
],
providers: [],
bootstrap: [AppComponent],
})
export class AppModule {}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/pages/embed/embed.component.ts
import { Component } from "@angular/core";
import { GuardService } from "@authing/guard-angular";
@Component({
selector: "embed-container",
templateUrl: "./embed.component.html",
styleUrls: ["./embed.component.css"]
})
export class LoginComponent {
constructor(private guard: GuardService) {}
logout() {
this.guard.client.logout();
}
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard/normal/embed.html
const guard = new GuardFactory.Guard({
appId: "AUTHING_APP_ID",
isSSO: true,
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
});
function Logout() {
// 登出后的回调地址请在 Authing 控制台 -> 应用详情 -> 应用配置 -> 登出回调 URL 中配置
guard.logout();
}
¶ 注册
你可以通过 startRegister
方法将 Authing Guard 切换到注册 Tab 页:
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/pages/Embed.tsx
import { useGuard } from "@authing/guard-react";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/pages/Embed.tsx
// import { useGuard } from "@authing/guard-react18";
import React from "react";
export default function Register() {
const guard = useGuard();
const startRegister = () => guard.startRegister();
return (
<div>
<button onClick={startRegister}>Start Register</button>
</div>
);
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/views/Embed.vue
export default {
methods: {
startRegister() {
this.$guard.startRegister();
},
},
};
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/views/Embed.vue
import { useGuard } from "@authing/guard-vue3";
const guard = useGuard();
const startRegister = () => guard.startRegister();
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/pages/embed/embed.component.ts
import { Component } from "@angular/core";
import { GuardService } from "@authing/guard-angular";
@Component({
selector: "embed-container",
templateUrl: "./embed.component.html",
styleUrls: ["./embed.component.css"]
})
export class LoginComponent {
constructor(private guard: GuardService) {}
startRegister() {
this.guard.client.startRegister();
}
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard/normal/embed.html
function startRegister() {
guard.startRegister();
}
¶ 第三方身份源登录
Authing 目前支持 20+ 种第三方身份源登录方式,基本囊括所有常用的身份源:
- 社会化身份源 (opens new window): Google、GitHub、微信、QQ、微博、飞书、企业微信、钉钉、AD、Azure AD...
- 基于认证协议的身份服务 (opens new window): OIDC、OAuth2.0、SAML、CAS...
你可以点击上面的链接查看 Authing 支持的所有第三方身份源,并根据你的实际需要进行选择。选好你需要使用的身份源后,请根据下面的引导完成接入:
你需要在 Authing 控制台完成所需身份源的配置。
使用下面的方法来控制配置完成的身份源的展示与隐藏。
此处以 Github 身份源为例:
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/App.tsx
import { GuardProvider } from "@authing/guard-react";
import "@authing/guard-react/dist/esm/guard.min.css";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/App.tsx
// import { GuardProvider } from "@authing/guard-react18";
// import "@authing/guard-react18/dist/esm/guard.min.css";
import React from "react";
// 用户业务根组件
import RouterComponent from "./router";
export default function App() {
return (
<GuardProvider
appId="AUTHING_APP_ID"
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host="https://my-authing-app.example.com"
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri="YOUR_REDIRECT_URI"
config={{
socialConnectionList: ["github"],
}}
>
<RouterComponent></RouterComponent>
</GuardProvider>
);
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/main.js
import Vue from "vue";
import { GuardPlugin } from "@authing/guard-vue2";
import "@authing/guard-vue2/dist/esm/guard.min.css";
Vue.use(GuardPlugin, {
appId: "AUTHING_APP_ID",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI",
config: {
socialConnectionList: ["github"],
},
});
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/main.ts
import { createApp } from "vue";
import { createGuard } from "@authing/guard-vue3";
import "@authing/guard-vue3/dist/esm/guard.min.css";
const app = createApp(App);
app.use(
createGuard({
appId: "AUTHING_APP_ID",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI",
config: {
socialConnectionList: ["github"],
},
})
);
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/app.module.ts
// app.module.ts
import { NgModule } from "@angular/core";
import { BrowserModule } from "@angular/platform-browser";
import { AppRoutingModule } from "./app-routing.module";
import { AppComponent } from "./app.component";
import { GuardModule } from "@authing/guard-angular";
@NgModule({
declarations: [AppComponent],
imports: [
BrowserModule,
AppRoutingModule,
GuardModule.forRoot({
appId: "AUTHING_APP_ID",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI",
config: {
socialConnectionList: ["github"],
},
}),
],
providers: [],
bootstrap: [AppComponent],
})
export class AppModule {}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard/normal/embed.html
const guard = new GuardFactory.Guard({
appId: "AUTHING_APP_ID",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI",
config: {
socialConnectionList: ["github"],
},
});
社会化登录全部有效值请参考:ISocialConnectionProvider
¶ 获取用户信息
你也可以通过 trackSession
方法获取用户信息:
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/pages/Embed.tsx
import { useGuard, User } from "@authing/guard-react";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/pages/Embed.tsx
// import { useGuard, User } from "@authing/guard-react18";
import React from "react";
export default function GetUserInfo() {
const guard = useGuard();
const getUserInfo = async () => {
// 获取用户信息
const userInfo: User | null = await guard.trackSession();
console.log("userInfo: ", userInfo);
};
return (
<div>
<button onClick={getUserInfo}>Get User Info</button>
</div>
);
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/views/Embed.vue
export default {
methods: {
async getUserInfo() {
// 获取用户信息
const userInfo = await this.$guard.trackSession();
console.log("userInfo: ", userInfo);
},
},
};
<script lang="ts" setup>
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/views/Embed.vue
import { useGuard } from "@authing/guard-vue3";
import type { User } from "@authing/guard-vue3";
const guard = useGuard();
const getUserInfo = async () => {
// 获取用户信息
const userInfo: User | null = await guard.trackSession();
console.log("userInfo: ", userInfo);
};
</script>
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/pages/embed/embed.component.ts
import { Component } from "@angular/core";
import { GuardService, User } from "@authing/guard-angular";
@Component({
selector: "embed-container",
templateUrl: "./embed.component.html",
styleUrls: ["./embed.component.css"]
})
export class GetUserInfoComponent {
constructor(private guard: GuardService) {}
async getUserInfo() {
// 获取用户信息
const userInfo: User | null = await this.guard.client.trackSession();
console.log("userInfo: ", userInfo);
}
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard/normal/embed.html
async function getUserInfo() {
// 获取用户信息
const userInfo = await guard.trackSession();
console.log(userInfo);
}
¶ 获取 Access Token
登录成功后,使用 ID Token 可换取 Access Token,控制台配置如下:
- 授权模式勾选
authing_token
- 返回类型勾选:
code token
和code
- 『换取 token 身份验证方式』、『检验 token 身份验证方式』、『撤回 token 身份验证方式』 全部勾选
none
// React 16 / 17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/pages/Embed.tsx
import { useGuard, User } from "@authing/guard-react";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/pages/Embed.tsx
// import { useGuard, User } from "@authing/guard-react18";
import React, { useEffect } from "react";
export default function Login() {
const guard = useGuard();
const [userInfo, setUserInfo] = useState<null | User>(null)
useEffect(() => {
guard.on('login', (userInfo: User) => {
console.log('userInfo in login: ', userInfo)
setUserInfo(userInfo)
})
}, [])
const getAccessTokenByIdToken = async () => {
const authenticationClient: AuthenticationClient = await guard.getAuthClient()
const res = await authenticationClient.getAccessTokenByIdToken({
// 控制台 -> 自建应用 -> 应用配置 -> 认证配置 -> 登录回调 URL
redirectUri: 'YOUR_REDIRECT_URI',
// 登录成功后,从用户信息中获取到的 ID Toten
idToken: userInfo!.token as string
})
console.log('getAccessTokenByIdToken: ', res)
}
return (
<div>
<button className='authing-button' onClick={getAccessTokenByIdToken}>Get Access Token By ID Token</button>
</div>
);
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/views/Embed.vue
export default {
methods: {
async getAccessTokenByIdToken () {
const authenticationClient = await this.$guard.getAuthClient()
const res = await authenticationClient.getAccessTokenByIdToken({
// 控制台 -> 自建应用 -> 应用配置 -> 认证配置 -> 登录回调 URL
redirectUri: 'YOUR_REDIRECT_URI',
// 登录成功后,从用户信息中获取到的 ID Toten
idToken: this.userInfo.token
})
console.log('getAccessTokenByIdToken: ', res)
}
},
};
<script lang="ts" setup>
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/views/Embed.vue
import { useGuard } from "@authing/guard-vue3";
import type { User } from "@authing/guard-vue3";
const guard = useGuard();
const userInfo = ref<User | null>(null);
const getAccessTokenByIdToken = async () => {
const authenticationClient: AuthenticationClient = await guard.getAuthClient()
const res = await authenticationClient.getAccessTokenByIdToken({
// 控制台 -> 自建应用 -> 应用配置 -> 认证配置 -> 登录回调 URL
redirectUri: 'YOUR_REDIRECT_URI',
// 登录成功后,从用户信息中获取到的 ID Toten
idToken: userInfo.value?.token as string
})
console.log('getAccessTokenByIdToken: ', res)
}
</script>
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/pages/embed/embed.component.ts
import { Component } from "@angular/core";
import { GuardService, User } from "@authing/guard-angular";
@Component({
selector: "embed-container",
templateUrl: "./embed.component.html",
styleUrls: ["./embed.component.css"]
})
export class GetUserInfoComponent {
constructor(private guard: GuardService) {}
userInfo: null | User = null
async getAccessTokenByIdToken () {
const authenticationClient: AuthenticationClient = await this.guard.client.getAuthClient()
const res = await authenticationClient.getAccessTokenByIdToken({
// 控制台 -> 自建应用 -> 应用配置 -> 认证配置 -> 登录回调 URL
redirectUri: 'YOUR_REDIRECT_URI',
// 登录成功后,从用户信息中获取到的 ID Toten
idToken: this.userInfo!.token as string
})
console.log('getAccessTokenByIdToken: ', res)
}
}
async function getAccessTokenByIdToken () {
const userInfo = await guard.trackSession()
const authenticationClient = await guard.client.getAuthClient()
const res = await authenticationClient.getAccessTokenByIdToken({
// 控制台 -> 自建应用 -> 应用配置 -> 认证配置 -> 登录回调 URL
redirectUri: 'YOUR_REDIRECT_URI',
// 登录成功后,从用户信息中获取到的 ID Toten
idToken: userInfo.token
})
console.log('getAccessTokenByIdToken: ', res)
}
¶ 切换语言
默认情况下,Guard 会展示你在 Authing 控制台中配置的默认语言,你也可以通过 changeLang
修改 Authing Guard 显示的语言,目前共支持以下四种:
- zh-CN:中文简体
- zh-TW:中文繁体
- en-US:英文
- ja-JP:日文
如果 Authing Guard 暂未支持用户的浏览器语言,Guard 会展示配置的默认语言。
Authing Guard 会持续新增对不同语言的支持,详情请参见 Authing 目前支持的语言列表。
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/pages/Embed.tsx
import { useGuard, User } from "@authing/guard-react";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/pages/Embed.tsx
// import { useGuard, User } from "@authing/guard-react18";
import React, { useEffect, useState } from "react";
export default function ChangeLanguage() {
const [langCache, setLangCache] = useState("");
const guard = useGuard();
useEffect(() => {
// 使用 start 方法挂载 Guard 组件到你指定的 DOM 节点,登录成功后返回 userInfo
guard.start("#authing-guard-container").then((userInfo: User) => {
console.log("userInfo: ", userInfo);
});
guard.on("load", () => {
const langCache = localStorage.getItem("_guard_i18nextLng") || "zh-CN";
setLangCache(langCache);
});
}, []);
const changeLang = (event: any) => {
guard.changeLang(event.target.value);
setLangCache(event.target.value);
};
return (
<div>
<select value={langCache} onChange={changeLang}>
<option value="zh-CN">zh-CN</option>
<option value="en-US">en-US</option>
<option value="zh-TW">zh-TW</option>
<option value="ja-JP">ja-JP</option>
</select>
<div id="authing-guard-container"></div>
</div>
);
}
<template>
<div class="embed-container">
<!-- 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/views/Embed.vue -->
<select v-model="langCache" @change="changeLang">
<option value="zh-CN">zh-CN</option>
<option value="zh-TW">zh-TW</option>
<option value="en-US">en-US</option>
<option value="ja-JP">ja-JP</option>
</select>
<div id="authing-guard-container"></div>
</div>
</template>
<script>
export default {
data() {
return {
langCache: "",
};
},
mounted() {
// 使用 start 方法挂载 Guard 组件到你指定的 DOM 节点,登录成功后返回 userInfo
this.$guard.start("#authing-guard-container").then((userInfo) => {
console.log("userInfo: ", userInfo);
});
this.$guard.on("load", () => {
this.langCache = localStorage.getItem("_guard_i18nextLng");
});
},
methods: {
changeLang(event) {
this.$guard.changeLang(event.target.value);
this.langCache = event.target.value;
},
},
};
</script>
<template>
<div class="embed-container">
<!-- 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/views/Embed.vue -->
<select v-model="langCache" @change="changeLang">
<option value="zh-CN">zh-CN</option>
<option value="zh-TW">zh-TW</option>
<option value="en-US">en-US</option>
<option value="ja-JP">ja-JP</option>
</select>
<div id="authing-guard-container"></div>
</div>
</template>
<script setup lang="ts">
import { ref, onMounted } from "vue";
import { useGuard } from "@authing/guard-vue3";
import type { User } from "@authing/guard-vue3";
const langCache = ref("");
const guard = useGuard();
onMounted(() => {
// 使用 start 方法挂载 Guard 组件到你指定的 DOM 节点,登录成功后返回 userInfo
guard.start("#authing-guard-container").then((userInfo: User) => {
console.log("userInfo: ", userInfo);
});
guard.on("load", () => {
langCache.value = localStorage.getItem("_guard_i18nextLng");
});
});
const changeLang = (event) => {
guard.changeLang(event.target.value);
langCache.value = event.target.value;
};
</script>
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/pages/embed/embed.component.ts
import { Component } from "@angular/core";
import { GuardService } from "@authing/guard-angular";
@Component({
selector: "embed-container",
templateUrl: "./embed.component.html",
styleUrls: ["./embed.component.css"]
})
export class GetUserInfoComponent {
constructor(private guard: GuardService) {}
langCache = "";
changeLang(event: any) {
this.langCache = event?.target?.value;
this.guard.client.changeLang(event?.target?.value);
}
}
<!-- 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard/normal/embed.html -->
<div class="change-lang-container">
<select ng-model="langCache" (change)="changeLang($event)">
<option ngValue="zh-CN">zh-CN</option>
<option ngValue="zh-TW">zh-TW</option>
<option ngValue="en-US">en-US</option>
<option ngValue="ja-JP">ja-JP</option>
</select>
<div id="authing-guard-container"></div>
</div>
<!-- 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard/normal/embed.html -->
<select onchange="changeLang(event)">
<option value="zh-CN">zh-CN</option>
<option value="zh-TW">zh-TW</option>
<option value="en-US">en-US</option>
<option value="ja-JP">ja-JP</option>
</select>
function changeLang(event) {
guard.changeLang(event.target.value);
}
¶ 自定义样式
默认情况下,Guard 会使用你在 Authing 控制台中配置的自定义 CSS 内容,你也可以通过 changeContentCSS
方法手动设置自定义 CSS 样式:
注:此方法只应该被调用一次,多次调用会覆盖之前设置的 CSS 内容。
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/pages/Embed.tsx
import { useGuard, User } from "@authing/guard-react";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/pages/Embed.tsx
// import { useGuard, User } from "@authing/guard-react18";
import React, { useEffect } from "react";
export default function ChangeContentCSS() {
const guard = useGuard();
useEffect(() => {
guard.start("#authing-guard-container").then((userInfo: User) => {
console.log("userInfo: ", userInfo);
});
}, []);
// 设置自定义样式
const changeContentCSS = () => {
guard.changeContentCSS(`
#authing-guard-container {
display: flex;
align-items: center;
justify-content: center;
}
`);
}
return (
<div>
<button onClick={changeContentCSS}>Change Content CSS</button>
<div id="authing-guard-container"></div>
</div>
);
}
<template>
<div class="embed-container">
<!-- 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/views/Embed.vue -->
<button class="authing-button" @click="changeContentCSS">
Change Content CSS
</button>
<div id="authing-guard-container"></div>
</div>
</template>
<script>
export default {
mounted() {
// 使用 start 方法挂载 Guard 组件到你指定的 DOM 节点,登录成功后返回 userInfo
this.$guard.start("#authing-guard-container").then((userInfo) => {
console.log("userInfo: ", userInfo);
});
},
methods: {
changeContentCSS() {
this.$guard.changeContentCSS(`
#authing-guard-container {
display: flex;
align-items: center;
justify-content: center;
}
`);
},
},
};
</script>
<template>
<div class="embed-container">
<!-- 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/views/Embed.vue -->
<button @click="changeContentCSS">Change Content CSS</button>
<div id="authing-guard-container"></div>
</div>
</template>
<script setup lang="ts">
import { ref, onMounted } from "vue";
import { useGuard } from "@authing/guard-vue3";
import type { User } from "@authing/guard-vue3";
const guard = useGuard();
onMounted(() => {
// 使用 start 方法挂载 Guard 组件到你指定的 DOM 节点,登录成功后返回 userInfo
guard.start("#authing-guard-container").then((userInfo: User) => {
console.log("userInfo: ", userInfo);
});
});
const changeContentCSS = () =>
guard.changeContentCSS(`
#authing-guard-container {
display: flex;
align-items: center;
justify-content: center;
}
`);
</script>
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/pages/embed/embed.component.ts
import { Component } from "@angular/core";
import { GuardService, User } from "@authing/guard-angular";
@Component({
selector: "embed-container",
templateUrl: "./embed.component.html",
styleUrls: ["./embed.component.css"]
})
export class GetUserInfoComponent {
constructor(private guard: GuardService) {}
ngOnInit() {
// 使用 start 方法挂载 Guard 组件到你指定的 DOM 节点,登录成功后返回 userInfo
this.guard.client
.start("#authing-guard-container")
.then((userInfo: User) => {
console.log("userInfo: ", userInfo);
});
}
changeContentCSS() {
this.guard.client.changeContentCSS(`
#authing-guard-container {
display: flex;
align-items: center;
justify-content: center;
}
`);
}
}
<div class="change-content-css-container">
<button (click)="changeContentCSS()">Change Content CSS</button>
<div id="authing-guard-container"></div>
</div>
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard/normal/embed.html
function changeContentCSS() {
guard.changeContentCSS(`
#authing-guard-container {
display: flex;
align-items: center;
justify-content: center;
}
`);
}
¶ 启用多因素人脸识别
多因素认证(Multi Factor Authentication,简称 MFA)是一种非常简单的安全实践方法,它能够在用户名称和密码之外额外增加一层保护。启用多因素认证后,用户进行操作时,除了需要提供用户名和密码外(第一次身份验证),还需要进行第二次身份验证。多因素认证结合起来将为你的帐号和资源提供更高的安全保护。
人脸作为人体特征的关键因素,在安全认证领域被广泛应用。

进入 Authing 控制台,左侧菜单选择 安全设置 -> 多因素认证,右侧开启人脸识别。
在原有代码基础上引入 face-api
,且在初始化 Guard 时传入参数 facePlugin
即可。
npm install --save face-api.js
// App.tsx
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/pages/Embed.tsx
import { GuardProvider } from '@authing/guard-react';
import '@authing/guard-react/dist/esm/guard.min.css';
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/pages/Embed.tsx
// import { GuardProvider } from '@authing/guard-react18';
// import '@authing/guard-react18/dist/esm/guard.min.css';
import React from 'react';
import * as facePlugin from 'face-api.js';
// 你的业务根组件
import RouterComponent from './router';
function App() {
return (
<GuardProvider
appId="AUTHING_APP_ID"
facePlugin={facePlugin}
>
<RouterComponent></RouterComponent>
</GuardProvider>
)
}
npm install --save face-api.js
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/views/Embed.vue
// main.js
import * as facePlugin from 'face-api.js'
import Vue from 'vue'
import { GuardPlugin } from '@authing/guard-vue2'
import '@authing/guard-vue2/dist/esm/guard.min.css'
Vue.use(GuardPlugin, {
appId: 'AUTHING_APP_ID',
facePlugin: facePlugin
})
npm install --save face-api.js
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/views/Embed.vue
// main.ts
import { createApp } from 'vue'
import { createGuard } from '@authing/guard-vue3'
import '@authing/guard-vue3/dist/esm/guard.min.css'
import * as facePlugin from 'face-api.js'
import App from './App.vue'
const app = createApp(App)
app.use(
createGuard({
appId: 'AUTHING_APP_ID',
facePlugin: facePlugin
})
)
npm install --save face-api.js
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/pages/embed/embed.component.ts
// app.module.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { AppRoutingModule } from './app-routing.module'
import { AppComponent } from './app.component'
import { GuardModule } from '@authing/guard-angular'
import * as facePlugin from 'face-api.js'
@NgModule({
declarations: [
AppComponent
],
imports: [
BrowserModule,
AppRoutingModule,
GuardModule.forRoot({
appId: 'AUTHING_APP_ID',
facePlugin: facePlugin
})
],
providers: [],
bootstrap: [AppComponent]
})
export class AppModule { }
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Authing Guard Demo</title>
<script src="https://cdn.authing.co/packages/face-api/face-api.min.js"></script>
<script src="https://cdn.authing.co/packages/guard/5.1.5/guard.min.js"></script>
<link rel="stylesheet" href="https://cdn.authing.co/packages/guard/5.1.5/guard.min.css" />
</head>
<body>
<div id="authing-guard-container"></div>
<script>
const guard = new GuardFactory.Guard({
appId: 'AUTHING_APP_ID',
facePlugin: faceapi
})
</script>
</body>
</html>
¶ Guard 内置 Authing JS SDK
Authing Guard 集成了 authing-js-sdk 的 AuthenticationClient (opens new window)(AuthenticationClient
以终端用户(End User)的身份进行请求,提供了登录、注册、登出、管理用户资料、获取授权资源等所有管理用户身份的方法;此模块还提供了各种身份协议的 SDK,如 OpenID Connect (opens new window)、OAuth 2.0 (opens new window)、SAML (opens new window)、CAS (opens new window))。
你可以通过 getAuthClient
获取 AuthenticationClient
实例,之后可调用 AuthenticationClient
的所有方法。
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/pages/Personal.tsx
import { useGuard, AuthenticationClient, User } from "@authing/guard-react";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/pages/Personal.tsx
// import { useGuard, AuthenticationClient, User } from "@authing/guard-react18";
import React, { useEffect } from "react";
export default function Personal() {
const guard = useGuard();
const updateProfile = async () => {
const authenticationClient: AuthenticationClient = await guard.getAuthClient();
// 获取到 AuthenticationClient 实例之后,可以调用其提供的所有方法
// 比如更新用户昵称
const userProfile: User = await authenticationClient.updateProfile({
nickname: "Nick",
});
console.log("userProfile: ", userProfile);
// 更多 AuthenticationClient 的方法,请见 authing-js-sdk 文档介绍。
// https://docs.authing.cn/v2/reference/sdk-for-node/authentication/
};
return (
<div>
<button className="authing-button" onClick={updateProfile}>
Update Profile
</button>
</div>
);
}
<template>
<div class="personal-container">
<!-- 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/views/Personal.vue -->
<button class="authing-button" @click="updateProfile">
Update Profile
</button>
</div>
</template>
<script>
export default {
methods: {
async updateProfile() {
const authenticationClient = await this.$guard.getAuthClient();
// 获取到 AuthenticationClient 实例之后,可以调用其提供的所有方法
// 比如更新用户昵称
const userProfile = await authenticationClient.updateProfile({
nickname: "Nick"
});
console.log(userProfile);
// 更多 AuthenticationClient 的方法,请见 authing-js-sdk 文档介绍。
// https://docs.authing.cn/v2/reference/sdk-for-node/authentication/
},
},
};
</script>
<template>
<div class="personal-container">
<!-- 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/views/Personal.vue -->
<button @click="updateProfile">Update Profile</button>
</div>
</template>
<script setup lang="ts">
import { useGuard } from "@authing/guard-vue3";
import type { User, AuthenticationClient } from "@authing/guard-vue3";
const guard = useGuard();
const updateProfile = async () => {
const authenticationClient: AuthenticationClient = await guard.getAuthClient();
// 获取到 AuthenticationClient 实例之后,可以调用其提供的所有方法
// 比如更新用户昵称
const userProfile: User = await authenticationClient.updateProfile({
nickname: "Nick",
});
console.log(userProfile);
// 更多 AuthenticationClient 的方法,请见 authing-js-sdk 文档介绍。
// https://docs.authing.cn/v2/reference/sdk-for-node/authentication/
};
</script>
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/pages/personal/personal.component.ts
import { Component } from "@angular/core";
import {
AuthenticationClient,
GuardService,
User,
} from "@authing/guard-angular";
@Component({
selector: "personal-container",
templateUrl: "./personal.component.html",
styleUrls: ["./personal.component.css"],
})
export class PersonalComponent {
constructor(private guard: GuardService) {}
async updateProfile() {
const authenticationClient: AuthenticationClient = await this.guard.client.getAuthClient();
// 获取到 AuthenticationClient 实例之后,可以调用其提供的所有方法
// 比如更新用户昵称
const userProfile: User = await authenticationClient.updateProfile({
nickname: "Nick",
});
console.log("userProfile: ", userProfile);
// 更多 AuthenticationClient 的方法,请见 authing-js-sdk 文档介绍。
// https://docs.authing.cn/v2/reference/sdk-for-node/authentication/
}
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard/normal/embed.html
async function updateProfile() {
const authenticationClient = await guard.getAuthClient();
// 获取到 AuthenticationClient 实例之后,可以调用其提供的所有方法
// 比如更新用户昵称
const userProfile = await authenticationClient.updateProfile({
nickname: "Nick",
});
console.log("userProfile: ", userProfile);
// 更多 AuthenticationClient 的方法,请见 authing-js-sdk 文档介绍。
// https://docs.authing.cn/v2/reference/sdk-for-node/authentication/
}
¶ 私有化部署
如果你是通过 私有化部署 的方式使用 Authing 服务,需要指定你私有化的端点(不带 Path),具体方式如下:
// App.tsx
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/App.tsx
import { GuardProvider } from "@authing/guard-react";
import "@authing/guard-react/dist/esm/guard.min.css";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/App.tsx
// import { GuardProvider } from "@authing/guard-react18";
// import "@authing/guard-react18/dist/esm/guard.min.css";
import React from "react";
// 用户业务根组件
import RouterComponent from "./router";
export default function App() {
return (
<GuardProvider
appId="AUTHING_APP_ID"
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host="https://my-authing-app.example.com"
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri="YOUR_REDIRECT_URI"
>
<RouterComponent></RouterComponent>
</GuardProvider>
);
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/main.js
// main.js
import Vue from "vue";
import { GuardPlugin } from "@authing/guard-vue2";
import "@authing/guard-vue2/dist/esm/guard.min.css";
Vue.use(GuardPlugin, {
appId: "AUTHING_APP_ID",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
});
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/main.ts
// main.ts
import { createApp } from "vue";
import { createGuard } from "@authing/guard-vue3";
import "@authing/guard-vue3/dist/esm/guard.min.css";
const app = createApp(App);
app.use(
createGuard({
appId: "AUTHING_APP_ID",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
})
);
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/app.module.ts
// app.module.ts
import { NgModule } from "@angular/core";
import { BrowserModule } from "@angular/platform-browser";
import { AppRoutingModule } from "./app-routing.module";
import { AppComponent } from "./app.component";
import { GuardModule } from "@authing/guard-angular";
@NgModule({
declarations: [AppComponent],
imports: [
BrowserModule,
AppRoutingModule,
GuardModule.forRoot({
appId: "AUTHING_APP_ID",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
}),
],
providers: [],
bootstrap: [AppComponent],
})
export class AppModule {}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard/normal/embed.html
const guard = new GuardFactory.Guard({
appId: "AUTHING_APP_ID",
// 如果你使用的是私有化部署的 Authing 服务,需要传入自定义 host,如:
// host: 'https://my-authing-app.example.com',
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
// redirectUri: "YOUR_REDIRECT_URI"
});
如果你不清楚具体的操作方式,请直接在你的私有化服务群中联系相应的 Authing 工作人员,他们将为你提供直接支持。
¶ 高级功能
除上述常用操作外,Guard 还支持一些更高级的操作(如管理用户自定义数据、退出登录、刷新 Token)。
以 刷新 Token 为例:
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/pages/Embed.tsx
import {
AuthenticationClient,
RefreshToken,
useGuard,
} from "@authing/guard-react";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/pages/Embed.tsx
// import { AuthenticationClient, RefreshToken, useGuard, } from "@authing/guard-react18";
export default function Login() {
const guard = useGuard();
const refreshToken = async () => {
const authenticationClient: AuthenticationClient = await guard.getAuthClient();
const refreshedToken: RefreshToken = await authenticationClient.refreshToken();
console.log(refreshedToken);
};
return (
<div>
<button className="authing-button" onClick={refreshToken}>
Refresh Token
</button>
</div>
);
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/views/Embed.vue
export default {
methods: {
async refreshToken() {
const authenticationClient = await this.$guard.getAuthClient();
const refreshedToken = await authenticationClient.refreshToken();
console.log(refreshedToken);
},
},
};
<script lang="ts" setup>
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/views/Embed.vue
import { useGuard } from "@authing/guard-vue3";
import type { RefreshToken, AuthenticationClient } from "@authing/guard-vue3";
const guard = useGuard();
const refreshToken = async () => {
const authenticationClient: AuthenticationClient = await guard.getAuthClient();
const refreshedToken: RefreshToken = await authenticationClient.refreshToken();
console.log(refreshedToken);
};
</script>
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/pages/embed/embed.component.ts
// Angular 组件中使用 Guard API
import { Component } from "@angular/core";
import {
AuthenticationClient,
GuardService,
RefreshToken,
} from "@authing/guard-angular";
@Component({
selector: "home-container",
templateUrl: "./home.component.html",
styleUrls: ["./home.component.css"],
})
export class HomeComponent {
constructor(
// 使用 Angular 依赖注入,获取 Guard 实例
private guard: GuardService
) {}
async refreshToken() {
const authenticationClient: AuthenticationClient = await this.guard.client.getAuthClient();
const refreshedToken: RefreshToken = await authenticationClient.refreshToken();
console.log(refreshedToken);
}
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard/normal/embed.html
async function refreshToken() {
const authenticationClient = await guard.getAuthClient();
const refreshedToken = await authenticationClient.refreshToken();
console.log(refreshedToken);
}
¶ 初始化参数列表
名称 | 类型 | 默认值 | 必传 | 描述 |
---|---|---|---|---|
appId | String | - | 是 | Authing 应用 ID (opens new window),可以在 Authing 控制台自建应用的应用详情中获取。 |
host | String | - | 否 | 如果此应用没有开启单点登录,需要填写自建应用 认证地址;如果开启了单点登录,则应填写单点登录的 应用面板地址;如果是私有化部署,填写私有化部署对应的 认证地址 或 应用面板地址 即可。 |
redirectUri | String | - | 否 | 控制台登录回调 URL |
mode | IGuardMode | normal | 否 | Guard 采用内嵌模式时,有两种展示形态:normal - 普通形态,modal - 模态框形态 |
defaultScene | IGuardModuleType | login | 否 | Guard 默认渲染页面 |
tenantId | String | - | 否 | 租户 ID |
lang | Lang | 如未设置,默认以控制台配置为准 | 否 | Guard 显示语言 |
isSSO | Boolean | false | 否 | 是否单点登录,详情请见实现单点登录 (opens new window)。 |
config | IGuardConfig | - | 否 | Guard 详细配置 |
style | CSSProperties | - | 否 | 自定义 Guard CSS Style |
¶ Config 参数列表
Authing Guard 提供了很多高级配置,如自定义 UI,使用特定登录方式等。所有配置如下:
参数名 | 参数说明 | 类型 | 是否必传 | 默认值 |
---|---|---|---|---|
target | 指定 Guard 表单的挂载点,接受 querySelector (opens new window) 能接受的所有参数或者 dom 元素,若未传入,Guard 会自动生成一个 div 标签放入 body 的最后面 | String | HTMLElement | 否 |
mode | Guard 展示模式 | IGuardMode | 否 | normal |
title | 产品名称 | String | 否 | Authing |
logo | 产品 logo | String | 否 | [Authing logo] |
contentCSS | 自定义 CSS 样式,如果指定了,会在 DOM 的 head 中插入一个节点。如 body {background:#6699 !important;}。 | String | 否 | - |
loginMethodList | 需要使用的普通登录(包括 LDAP)方式列表 | ILoginMethod[] | 否 | [phone-code, password] |
registerMethodList | 需要使用的注册方式 | IRegisterMethod[] | 否 | ['email', 'phone'] |
registerMethod | 默认展示的注册方式 | IRegisterMethod | 否 | |
defaultScene | 打开组件时展示的界面 | IGuardModuleType | 否 | password |
socialConnectionList | 需要使用的社会化登录列表 | ISocialConnectionProvider[] | 否 | [] |
enterpriseConnections | 需要使用的企业身份源列表(不包括 LDAP),列表项值为配置的企业身份源唯一标识符,注意:企业身份源需要传入对应 APP ID 才能使用 | Array | 否 | [] |
loginMethod | 默认显示的登录方式 | ILoginMethod | 否 | password |
autoRegister | 是否将注册和登录合并,合并后如果用户不存在将自动注册 | Boolean | 否 | false |
disableRegister | 是否禁止注册,禁止的话会隐藏「注册」入口 | Boolean | 否 | false |
disableResetPwd | 是否禁止重置密码,禁止的话会隐藏「忘记密码」入口 | Boolean | 否 | Authing 控制台中的配置 |
clickCloseable | Modal 模式时是否隐藏登录框左上角的关闭按钮,如果隐藏,用户将不能通过点击按钮关闭登录框 | Boolean | 否 | Authing 控制台中的配置 |
escCloseable | Modal 模式时是否可以通过键盘 ESC 键关闭登录框 | Boolean | 否 | Authing 控制台中的配置 |
isSSO | 是否是单点登录 | Boolean | 否 | false |
qrCodeScanOptions | 扫码登录配置,详情请查看 QrCodeAuthenticationClient().startScanning(domId, options) (opens new window) 的 options 参数 | Objcect | 否 | null |
lang | 使用语言 | Lang | 否 | en-US |
langRange | 语言切换可选的范围,如果填入空数组或一个项时,则不会显示语言切换按钮 | Lang[] | 否 | ['zh-CN', 'en-US'] |
host | 如果此应用没有开启单点登录,需要填写自建应用的 认证地址;如果开启了单点登录,则应填写单点登录的 应用面板地址;如果是私有化部署,填写私有化部署对应的 认证地址 或 应用面板地址 即可。 | String | 否 | - |
¶ 事件列表
使用 Guard 提供的 on
方法可以对 Guard 支持的事件进行监听:
// React 16/17
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react/normal/src/pages/Embed.tsx
import { useGuard, User } from "@authing/guard-react";
// React 18
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-react18/normal/src/pages/Embed.tsx
// import { useGuard, User } from "@authing/guard-react18";
import React, { useEffect } from "react";
export default function Login() {
const guard = useGuard();
useEffect(() => {
// 使用 start 方法挂载 Guard 组件到你指定的 DOM 节点,登录成功后返回 userInfo
guard.start("#authing-guard-container").then((userInfo: User) => {
console.log("userInfo: ", userInfo);
});
guard.on("login", (userInfo: User) => {
// 自定义登录成功后的业务逻辑
// 比如跳转到对应的某个页面等
console.log("userInfo in login: ", userInfo);
});
}, []);
return (
<div>
<div id="authing-guard-container"></div>
</div>
);
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue2/normal/src/views/Embed.vue
export default {
mounted() {
// 使用 start 方法挂载 Guard 组件到你指定的 DOM 节点,登录成功后返回 userInfo
this.$guard.start("#authing-guard-container").then((userInfo) => {
console.log(userInfo);
});
this.$guard.on("login", (userInfo) => {
// 自定义登录成功后的业务逻辑
// 比如跳转到对应的某个页面等
console.log("userInfo in login: ", userInfo);
});
},
};
<script lang="ts" setup>
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-vue3/normal/src/views/Embed.vue
import { onMounted } from "vue";
import { useGuard } from "@authing/guard-vue3";
import type { User } from "@authing/guard-vue3";
const guard = useGuard();
onMounted(() => {
// 使用 start 方法挂载 Guard 组件到你指定的 DOM 节点,登录成功后返回 userInfo
guard.start("#authing-guard-container").then((userInfo: User) => {
console.log("userInfo: ", userInfo);
});
guard.on("login", (userInfo: User) => {
// 自定义登录成功后的业务逻辑
// 比如跳转到对应的某个页面等
console.log("userInfo in login: ", userInfo);
});
});
</script>
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard-angular/normal/src/app/pages/embed/embed.component.ts
import { Component, ChangeDetectorRef } from "@angular/core";
import { GuardService, User } from "@authing/guard-angular";
@Component({
selector: "embed-container",
templateUrl: "./embed.component.html",
styleUrls: ["./embed.component.css"],
})
export class EmbedComponent {
constructor(private guard: GuardService) {}
ngOnInit() {
// 使用 start 方法挂载 Guard 组件到你指定的 DOM 节点,登录成功后返回 userInfo
this.guard.client
.start("#authing-guard-container")
.then((userInfo: User) => {
console.log(userInfo);
});
this.guard.client.on("login", (userInfo: User) => {
// 自定义登录成功后的业务逻辑
// 比如跳转到对应的某个页面等
console.log("userInfo in login: ", userInfo);
});
}
}
// 代码示例:https://github.com/Authing/Guard/blob/v5/examples/guard/normal/embed.html
guard.on("login", (userInfo) => {
// 自定义登录成功后的业务逻辑
// 比如跳转到对应的某个页面等
console.log(userInfo);
});
完整事件列表如下:
如果配置了登录注册合并,将之后触发 login
事件,不会触发 register
事件。
事件名称 | 描述 | 回调参数 | 回调参数说明 |
---|---|---|---|
load | Guard 初始化完成,开始渲染页面 | authenticationClient | AuthenticationClient (opens new window) |
load-error | Guard 初始化失败 | error | 错误信息 |
before-login | 用户触发登录前(返回<boolean | Promise<boolean>>用于控制本次登录是否继续)。 | loginParams , authenticationClient | loginParams: NomalLoginParams | authenticationClient: AuthenticationClient (opens new window) |
login | 用户登录成功,可以在回调函数中自定义登录后的业务逻辑 | user,authenticationClient | user: User authenticationClient: AuthenticationClient (opens new window) |
login-error | 用户登录失败 | error | 错误信息,包含字段缺失/非法或服务器错误等信息 |
before-register | 用户触发注册前(返回<boolean | Promise<boolean>>用于控制本次注册是否继续)。 | registerParams,authenticationClient | registerParams: RegisterParams authenticationClient: AuthenticationClient (opens new window) |
register | 用户注册成功 | user, authenticationClient | user: User authenticationClient: AuthenticationClient (opens new window) |
register-error | 用户注册失败 | error | 错误信息,包含字段缺失/非法或服务器错误等信息 |
email-send | 邮件发送成功 | authenticationClient,sence | sence: IEmailScene authenticationClient: AuthenticationClient (opens new window) |
email-send-error | 邮件发送失败 | error,authenticationClient,sence | error: 具体错误信息 sence: IEmailScene authenticationClient: AuthenticationClient (opens new window) |
phone-send | 短信验证码发送成功 | authenticationClient,sence | sence: ISceneType authenticationClient: AuthenticationClient (opens new window) |
phone-send-error | 短信验证码发送失败 | error,authenticationClient,sence | error: 具体错误信息 sence: ISceneType authenticationClient: AuthenticationClient (opens new window) |
pwd-reset | 重置密码成功 | authenticationClient | authenticationClient: AuthenticationClient (opens new window) |
pwd-reset-error | 重置密码失败 | error,authenticationClient | error: 具体错误信息 authenticationClient: AuthenticationClient (opens new window) |
close | modal 模式中 guard 关闭事件 | - | - |
login-tab-change | 登录方式 tab 切换事件 | activeTab | 切换后的 tabKey |
register-tab-change | 注册方式 tab 切换事件 | activeTab | 切换后的 tabKey |
register-info-completed | 注册补全成功事件 | user,udfs,authenticationClient | user: User udfs: Object authenticationClient: AuthenticationClient (opens new window) |
register-info-completed-error | 注册补全失败事件 | error,udfs,authenticationClient | error: 错误信息 udfs: Object authenticationClient: AuthenticationClient (opens new window) |
lang-change | 语言切换事件 | lang | Lang |
before-change-module | Guard 内部 Module 切换前事件(返回<boolean | Promise<boolean>>用于控制本次切换是否继续) | moduleType,initData | moduleType: IGuardModuleType initData: 目标节点初始化所需数据 |
after-change-module | Guard 内部 Module 切换后事件 | options | options: OnAfterChangeModuleOptions |
¶ 附录
此附录中的 初始化参数列表 和 Config 参数列表 都会作为 Guard 初始化的配置项,例如:
// App.tsx
// React 16/17
import { GuardProvider } from "@authing/guard-react";
import "@authing/guard-react/dist/esm/guard.min.css";
// React 18
// import { GuardProvider } from "@authing/guard-react18";
// import "@authing/guard-react18/dist/esm/guard.min.css";
import React from "react";
// 你的业务代码根组件
import RouterComponent from "./router";
function App() {
return (
<GuardProvider
appId="AUTHING_APP_ID"
// 如果此应用没有开启单点登录,需要填写自建应用的「认证地址」;
// 如果开启了单点登录,则应填写单点登录的「应用面板地址」;
// 如果是私有化部署,填写私有化部署对应的「认证地址」或「应用面板地址」即可。
host="https://my-authing-app.example.com"
// 控制台登录回调 URL
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
redirectUri="https://my-authing-app.example.com/callback"
// modal 弹框模式
// normal 内嵌模式
mode="normal"
// 默认展示页面,具体值参考附录中的 IGuardModuleType
defaultScene="login"
tenantId="AUTHING_TENANT_ID"
// 显示语言,可用值参考附录中的 Lang
lang="zh-CN"
// 是否开启单点登录
isSSO={false}
// Guard 详细配置,具体值参考附录中的 Config 参数列表
config={{}}
>
<RouterComponent></RouterComponent>
</GuardProvider>
);
}
// main.js
import Vue from "vue";
import App from "./App.vue";
import { GuardPlugin } from "@authing/guard-vue2";
import "@authing/guard-vue2/dist/esm/guard.min.css";
Vue.use(GuardPlugin, {
appId: "AUTHING_APP_ID",
// 如果此应用没有开启单点登录,需要填写自建应用的「认证地址」;
// 如果开启了单点登录,则应填写单点登录的「应用面板地址」;
// 如果是私有化部署,填写私有化部署对应的「认证地址」或「应用面板地址」即可。
host: "https://my-authing-app.example.com",
// 控制台登录回调 URL
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
redirectUri: "https://my-authing-app.example.com/callback",
// modal 弹框模式
// normal 内嵌模式
mode: "normal",
// 默认展示页面,具体值参考附录中的 IGuardModuleType
defaultScene: "login",
tenantId: "AUTHING_TENANT_ID",
// 显示语言,可用值参考附录中的 Lang
lang: "zh-CN",
// 是否开启单点登录
isSSO: false,
// Guard 详细配置,具体值参考附录中的 Config 参数列表
config: {},
});
// main.ts
import { createApp } from "vue";
import App from "./App.vue";
import { createGuard } from "@authing/guard-vue3";
import "@authing/guard-vue3/dist/esm/guard.min.css";
const app = createApp(App);
app.use(
createGuard({
appId: "AUTHING_APP_ID",
// 如果此应用没有开启单点登录,需要填写自建应用的「认证地址」;
// 如果开启了单点登录,则应填写单点登录的「应用面板地址」;
// 如果是私有化部署,填写私有化部署对应的「认证地址」或「应用面板地址」即可。
host: "https://my-authing-app.example.com",
// 控制台登录回调 URL
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
redirectUri: "https://my-authing-app.example.com/callback",
// modal 弹框模式
// normal 内嵌模式
mode: "normal",
// 默认展示页面,具体值参考附录中的 IGuardModuleType
defaultScene: "login",
tenantId: "AUTHING_TENANT_ID",
// 显示语言,可用值参考附录中的 Lang
lang: "zh-CN",
// 是否开启单点登录
isSSO: false,
// Guard 详细配置,具体值参考附录中的 Config 参数列表
config: {},
})
);
// angular.json
{
"projects": {
"architect": {
"build": {
"styles": ["node_modules/@authing/guard-angular/dist/guard.min.css"]
}
}
}
}
// app.module.ts
import { NgModule } from "@angular/core";
import { BrowserModule } from "@angular/platform-browser";
import { AppRoutingModule } from "./app-routing.module";
import { AppComponent } from "./app.component";
import { GuardModule } from "@authing/guard-angular";
@NgModule({
declarations: [AppComponent],
imports: [
BrowserModule,
AppRoutingModule,
GuardModule.forRoot({
appId: "AUTHING_APP_ID",
// 如果此应用没有开启单点登录,需要填写自建应用的「认证地址」;
// 如果开启了单点登录,则应填写单点登录的「应用面板地址」;
// 如果是私有化部署,填写私有化部署对应的「认证地址」或「应用面板地址」即可。
host: "https://my-authing-app.example.com",
// 控制台登录回调 URL
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
redirectUri: "https://my-authing-app.example.com/callback",
// modal 弹框模式
// normal 内嵌模式
mode: "normal",
// 默认展示页面,具体值参考附录中的 IGuardModuleType
defaultScene: "login",
tenantId: "AUTHING_TENANT_ID",
// 显示语言,可用值参考附录中的 Lang
lang: "zh-CN",
// 是否开启单点登录
isSSO: false,
// Guard 详细配置,具体值参考附录中的 Config 参数列表
config: {},
}),
],
providers: [],
bootstrap: [AppComponent],
})
export class AppModule {}
const guard = new GuardFactory.Guard({
appId: "AUTHING_APP_ID",
// 如果此应用没有开启单点登录,需要填写自建应用的「认证地址」;
// 如果开启了单点登录,则应填写单点登录的「应用面板地址」;
// 如果是私有化部署,填写私有化部署对应的「认证地址」或「应用面板地址」即可。
host: "https://my-authing-app.example.com",
// 控制台登录回调 URL
// 默认情况下,会使用你在 Authing 控制台中配置的第一个回调地址为此次认证使用的回调地址。
// 如果你配置了多个回调地址,也可以手动指定(此地址也需要加入到应用的「登录回调 URL」中):
redirectUri: "https://my-authing-app.example.com/callback",
// modal 弹框模式
// normal 内嵌模式
mode: "normal",
// 默认展示页面,具体值参考附录中的 IGuardModuleType
defaultScene: "login",
tenantId: "AUTHING_TENANT_ID",
// 显示语言,可用值参考附录中的 Lang
lang: "zh-CN",
// 是否开启单点登录
isSSO: false,
// Guard 详细配置,具体值参考附录中的Config 参数列表
config: {},
});
¶ 配置安全域
默认情况下,Authing 不会校验 API 请求来源,你可以在 Authing 控制台中的 安全设置 -> 通用安全 -> 基础安全 -> 安全域(CORS)进行配置。
如果有多个域名,可以通过换行符(\n)进行分割。
配置之后,只有在你安全域配置白名单中的域,才能调用相关 API,从而正常使用 Authing Guard 功能。
¶ 控制台配置项与 Authing Guard 内嵌模式本地配置的关系
如果你不进行额外配置,Authing Guard 默认会使用云端的 Authing 控制台配置项,否则会对控制台中的配置进行覆盖。下面以 Guard 展示默认语言为例。
默认情况下,Guard 会读取品牌化配置中的 默认语言 作为默认展示语言:
你也可以通过 changeLang
方法修改需要展示的语言,参考切换语言
¶ 类型定义
¶ IGuardMode
值 | 描述 |
---|---|
normal | 普通形态 |
modal | 模态框形态 |
¶ Lang
值 | 描述 |
---|---|
zh-CN | 中文 |
en-US | 英文 |
zh-TW | 繁体 |
ja-JP | 日语 |
¶ ILoginMethod
Guard 支持的普通登录方式
值 | 说明 |
---|---|
ldap | LDAP 身份目录登录(需要配置 LDAP 服务) |
app-qrcode | APP 扫码登录(需要接入 APP 扫码登录) |
password | 账号密码登录(包括手机号 + 密码、邮箱 + 密码、用户名 + 密码) |
phone-code | 手机验证码登录 |
wechat-miniprogram-qrcode | 微信 PC 小程序扫码登录 |
ad | AD 用户目录登录 |
¶ IRegisterMethod
Guard 支持的注册方式
值 | 说明 |
---|---|
邮箱密码注册 | |
emailCode | 邮箱验证码注册 |
phone | 手机验证码注册 |
¶ IGuardModuleType
Guard 可展示的界面
值 | 说明 |
---|---|
login | 登录界面 |
register | 注册界面 |
error | Error 页面 |
mfa | MFA |
forgetPassword | 重置密码 |
forcedPasswordReset | 登录安全策略 修改密码 |
noticePasswordReset | 提示 修改密码 |
firstLoginPassword | 首次登录 修改密码 |
unsafePasswordReset | 密码强度不符 修改密码 |
downloadAT | 加载 GA 验证器 |
bindTotp | 绑定 TOTP |
anyQuestions | 问题反馈 |
loginCompleteInfo | 登录信息补全 |
registerPassword | 注册密码补全 |
registerCompleteInfo | 注册信息补全 |
recoveryCode | MFA TOTP 恢复码 |
submitSuccess | 提交成功 |
identityBindingAsk | 身份源绑定 问询 |
identityBinding | 身份源绑定 |
selfUnlock | 自助解锁 |
¶ ISocialConnectionProvider
Guard 支持的社会化登录方式
值 | 说明 |
---|---|
alipay | 支付宝登录 |
QQ 登录 | |
新浪微博登录 | |
github | GitHub 登录 |
Google 账号登录 | |
wechat:pc | 微信 PC 端登录 |
dingtalk | 钉钉登录 |
wechatwork:corp:qrconnect | 企业微信内部应用 |
wechatwork:service-provider:qrconnect | 企业微信第三方应用扫码授权登录 |
wechatwork:service-provider:authorization | 企业微信第三方应用网页授权登录 |
wechat:webpage-authorization | 微信网页授权登录 |
wechat:mobile | 微信移动端扫码登录 |
wechatwork:addressbook | 企业微信通讯录 |
apple | Apple 登录 |
lark-public | 飞书应用商店登录 |
lark-internal | 飞书企业自建应用登录 |
baidu | 百度登录 |
领英登录 | |
slack | Slack 登录 |
yidun | 网易易盾登录 |
qingcloud | 青云 QingCloud 登录 |
FaceBook 登录 |
¶ IEmailScene
Guard 内部邮箱验证码发送的场景值,根据场景值发送控制台配置完成的邮件模版
场景值 | 应用场景 |
---|---|
LOGIN_VERIFY_CODE | 登录场景发送邮箱验证码 |
REGISTER_VERIFY_CODE | 注册场景发送邮箱验证码 |
MFA_VERIFY_CODE | 邮箱 MFA 场景发送邮箱验证码 |
SELF_UNLOCKING_VERIFY_CODE | 自助解锁场景发送邮箱验证码 |
RESET_PASSWORD_VERIFY_CODE | 重置密码场景发送邮箱验证码 |
INFORMATION_COMPLETION_VERIFY_CODE | 信息补全场景发送邮箱验证码 |
¶ ISceneType
Guard 内部短信验证码发送的场景值
场景值 | 应用场景 |
---|---|
login | 登录场景发送短信验证码 |
register | 注册场景发送短信验证码 |
mfa-verify | 邮箱 MFA 场景发送短信验证码 |
reset | 重置密码场景发送短信验证码 |
complete-phone | 信息补全场景发送短信验证码 |
¶ NomalLoginParams
interface NomalLoginParams {
type: "ldap" /**LDAP 登录 */
| "ad" /**AD 登录 */
| "password"/**密码登录,如手机号 + 密码,邮箱 + 密码 */;
data: {
identity: string; // 账号
password: string; // 密码
captchaCode?: string; // 图形验证码
};
}
¶ VerifyCodeLoginParams
interface VerifyCodeLoginParams {
type: "email-code" /**邮箱验证码登录 */
| "phone-code" /**手机验证码登录 */;
data: {
identity: string; // 账号
code: string; // 验证码
phoneCountryCode?: string; // 开启国际化短信后携带的区号信息
};
}
¶ ScanLoginParams
interface ScanLoginParams {
type: "app-qrcode" /**APP 扫码登录登录 */
| "wechat-miniprogram-qrcode" /**微信小程序扫码登录 */
| "wechatmp-qrcode" /**微信公众号扫码登录登录 */;
data: User; // 用户信息
}
¶ RegisterParams
interface RegisterParams {
type: "phone" /**手机验证码注册 */
| "email" /**邮箱密码注册 */
| "emailCode" /**邮箱验证码注册 */;
data: {
identity: string; // 账号
password?: string; // 密码
code?: string; // 验证码
};
}
¶ User
详情请见:用户字段释义 (opens new window)。
¶ OnAfterChangeModuleOptions
interface OnAfterChangeModuleOptions {
currentView: string
currentModule: IGuardModuleType
currentTab?: string
data?: any
}
